Table of Contents
Target Namespace
http://imi.go.jp/ns/core/2
Version
2.4.1
Element and Attribute Namespaces
Global element and attribute declarations belong to this schema's target namespace.
By default, local element declarations have no namespace.
By default, local attribute declarations have no namespace.
Schema Composition
This schema imports schema(s) from the following namespace(s):
Documentation
コア語彙は、共通語彙基盤の基礎をなすもので、氏名、住所、組織等、あらゆる社会活動で使用される中核的な用語の集合です。多くのシステム間で情報交換のための基礎となる語彙で、データ交換、オープンデータの二次利用等の効率化に役立つものです。 IMI Core Vocabulary
Application Data
<dct :title xml:lang="ja"> 共通語彙基盤コア語彙
</dct :title>
<dct :title xml:lang="en"> IMI Core Vocabulary
</dct :title>
<dct :license> http://creativecommons.org/publicdomain/zero/1.0/
</dct :license>
<dct :issued> 2017-11-10
</dct :issued>
<dct :creator>
<foaf :name xml:lang="ja"> 経済産業省
</foaf :name>
<foaf :name xml:lang="en"> Ministry of Economy, Trade and Industry
</foaf :name>
<foaf :homepage> http://www.meti.go.jp/
</foaf :homepage>
</dct :creator>
<dct :creator>
<foaf :name xml:lang="ja"> IPA 独立行政法人情報処理推進機構
</foaf :name>
<foaf :name xml:lang="en"> Information-technology Promotion Agency, Japan.
</foaf :name>
<foaf :homepage> http://www.ipa.go.jp/
</foaf :homepage>
</dct :creator>
Declared Namespaces
Prefix
Namespace
xml
http://www.w3.org/XML/1998/namespace
foaf
http://xmlns.com/foaf/0.1/
dct
http://purl.org/dc/terms/
xsd
http://www.w3.org/2001/XMLSchema
ic
http://imi.go.jp/ns/core/2
uncefactISO4217
urn:un:unece:uncefact:codelist:standard:ISO:ISO3AlphaCurrencyCode:2012-08-31
Schema Component Representation
<
xsd:schema targetNamespace ="
http://imi.go.jp/ns/core/2 "
version ="
2.4.1 ">
<xsd:import namespace ="urn:un:unece:uncefact:codelist:standard:ISO:ISO3AlphaCurrencyCode:2012-08-31 " schemaLocation ="./ISO_ISO3AlphaCurrencyCode_2012-08-31.xsd "/>
...
</
xsd:schema >
Name
FAX番号
Type

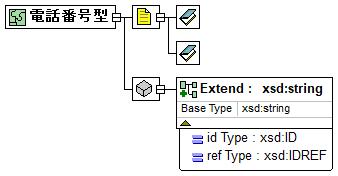

ic :電話番号型
Nillable
yes
Abstract
no
Documentation
FAX番号を記述するためのプロパティ用語 ※0-9 の数字及び + - ( ) , の文字のみを使用 The facsimile number. Note: Use '0 to 9' numeric characters and 'plus '+', minus '-', opening parenthesis '(', closing parenthesis ')', and comma ',' 'characters only.
Diagram
XML Instance Representation
<
ic :FAX番号
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
xsd :string </
ic :FAX番号>
Schema Component Representation
<
xsd:element name ="
FAX番号 "
type ="
ic :電話番号型 "
nillable ="
true "/>

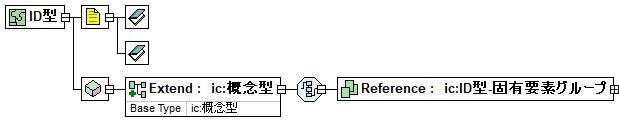

Element: ID
Name
ID
Type
ic :ID型
Nillable
yes
Abstract
no
Documentation
事物に割り振られたID(識別子)を記述するためのプロパティ用語 The identifier assigned to a thing.
Diagram
XML Instance Representation
<
ic :ID
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :ID>
Schema Component Representation
<
xsd:element name ="
ID "
type ="
ic :ID型 "
nillable ="
true "/>

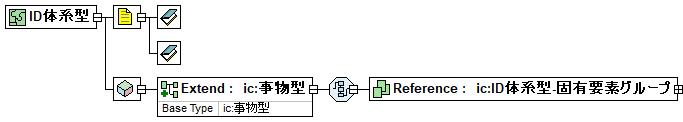

Element: ID体系
Name
ID体系
Type
ic :ID体系型
Nillable
yes
Abstract
no
Documentation
IDの体系を表現するためのクラス用語 A class term to express a system for specifying identifiers.
Diagram
XML Instance Representation
<
ic :ID体系
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :ID体系>
Schema Component Representation
<
xsd:element name ="
ID体系 "
type ="
ic :ID体系型 "
nillable ="
true "/>
Name
Webサイト
Type
ic :Webサイト-単純型
Nillable
no
Abstract
no
Documentation
Webサイトを参照するURLを記述するためのプロパティ用語 The URL that references a Web site.
Diagram
Element: アクセス
XML Instance Representation
<
ic :アクセス
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :アクセス>
Schema Component Representation
<
xsd:element name ="
アクセス "
type ="
ic :アクセス型 "
nillable ="
true "/>
Name
アクセス区間
Type
ic :アクセス区間型
Nillable
yes
Abstract
no
Documentation
アクセス方法の各区間の一覧を記述するためのプロパティ用語 The list of sections of a route.
Diagram
XML Instance Representation
<
ic :アクセス区間
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :アクセス区間>
Schema Component Representation
<
xsd:element name ="
アクセス区間 "
type ="
ic :アクセス区間型 "
nillable ="
true "/>
Element: イベント
Name
イベント
Type
ic :イベント型
Nillable
yes
Abstract
no
Documentation
時間と場所を指定して行われるイベント(ビジネス、スポーツ、教育、娯楽などの催し)を表現するためのクラス用語 A class term to express an event (such as a business, sport, educational, or entertaining activity) which is held at the specified time and location.
Diagram
XML Instance Representation
<
ic :イベント
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :イベント>
Schema Component Representation
<
xsd:element name ="
イベント "
type ="
ic :イベント型 "
nillable ="
true "/>
Name

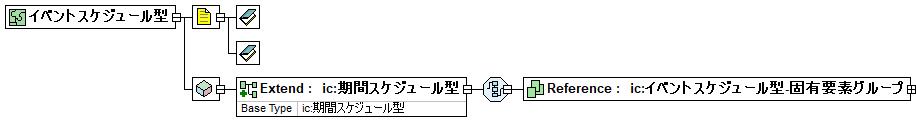

イベントスケジュール
Type
ic :イベントスケジュール型
Nillable
yes
Abstract
no
Documentation
イベントスケジュールを表現するためのクラス用語 A class term to express an event schedule.
Diagram
XML Instance Representation
<
ic :イベントスケジュール
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :イベントスケジュール>
Schema Component Representation
<
xsd:element name ="
イベントスケジュール "
type ="
ic :イベントスケジュール型 "
nillable ="
true "/>
Element: カナ表記
Name
カレンダー
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
カレンダーの種類を表すコードを記述するためのプロパティ用語 The code specifying a type of calendar.
Diagram
XML Instance Representation
<
ic :カレンダー
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :カレンダー>
Schema Component Representation
<
xsd:element name ="
カレンダー "
type ="
ic :コード型 "
nillable ="
true "/>
Element: コード
Name
コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
コードを表現するためのクラス用語 A class term to express a code.
Diagram
XML Instance Representation
<
ic :コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :コード>
Schema Component Representation
<
xsd:element name ="
コード "
type ="
ic :コード型 "
nillable ="
true "/>
Name

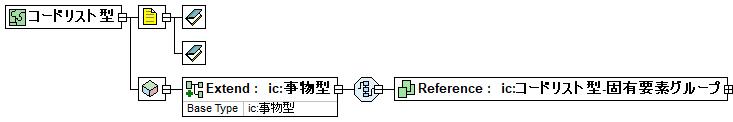

コードリスト
Type
ic :コードリスト型
Nillable
yes
Abstract
no
Documentation
コードリストを表現するためのクラス用語 A class term to express a code list.
Diagram
XML Instance Representation
<
ic :コードリスト
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :コードリスト>
Schema Component Representation
<
xsd:element name ="
コードリスト "
type ="
ic :コードリスト型 "
nillable ="
true "/>
XML Instance Representation
<
ic :コード種別
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :コード種別>
Schema Component Representation
<
xsd:element name ="
コード種別 "
type ="
ic :コードリスト型 "
nillable ="
true "/>

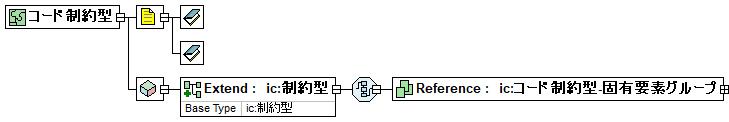

Name
コード制約
Type
ic :コード制約型
Nillable
yes
Abstract
no
Documentation
対象となる事物の制約条件をコードによって指定するためのクラス用語 A class term to express a restriction on a targeted thing as a code.
Diagram
XML Instance Representation
<
ic :コード制約
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :コード制約>
Schema Component Representation
<
xsd:element name ="
コード制約 "
type ="
ic :コード制約型 "
nillable ="
true "/>
Element: サービス
Name
サービス
Type
ic :サービス型
Nillable
yes
Abstract
no
Documentation
サービスの情報を表現するためのクラス用語 A class term to express a service.
Diagram
XML Instance Representation
<
ic :サービス
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :サービス>
Schema Component Representation
<
xsd:element name ="
サービス "
type ="
ic :サービス型 "
nillable ="
true "/>
Element: サイズ
Name
シリアル番号
Type
ic :ID型
Nillable
yes
Abstract
no
Documentation
シリアル番号を記述するためのプロパティ用語 The serial number.
Diagram
XML Instance Representation
<
ic :シリアル番号
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :シリアル番号>
Schema Component Representation
<
xsd:element name ="
シリアル番号 "
type ="
ic :ID型 "
nillable ="
true "/>
Name
バリアフリー
Type
ic :バリアフリー-単純型
Nillable
no
Abstract
no
Documentation
設備などのバリアフリーに関する情報の記述のためのプロパティ用語 The description of information regarding accessibility to an equipment, etc.
Diagram
Element: ビル番号
Name
ビル番号
Type
ic :ビル番号-単純型
Nillable
no
Abstract
no
Documentation
ビルの番号の表記(号棟など)を記述するためのプロパティ用語 The building number (such as unit number) expressed as text.
Diagram
Element: ビル名
Name
ミドルネームカナ表記
Type
ic :ミドルネームカナ表記-単純型
Nillable
no
Abstract
no
Documentation
ミドルネームのカタカナ表記を記述するためのプロパティ用語 The textual expression of a middle name in Katakana.
Diagram
Name
ミドルネームローマ字表記
Type
ic :ミドルネームローマ字表記-単純型
Nillable
no
Abstract
no
Documentation
ミドルネームのローマ字表記を記述するためのプロパティ用語 The textual expression of a middle name in the Roman alphabet.
Diagram
Name
メタデータ
Type
ic :文書型
Nillable
yes
Abstract
no
Documentation
データのメタデータを記述するためのプロパティ用語 A document specifying the metadata of a data.
Diagram
XML Instance Representation
<
ic :メタデータ
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :メタデータ>
Schema Component Representation
<
xsd:element name ="
メタデータ "
type ="
ic :文書型 "
nillable ="
true "/>
Name
ローマ字表記
Type
ic :ローマ字表記-単純型
Nillable
no
Abstract
no
Documentation
ローマ字表記を記述するためのプロパティ用語 The textual expression in the Roman alphabet.
Diagram
Element: 緯度
Name
緯度
Type
ic :緯度-単純型
Nillable
no
Abstract
no
Documentation
緯度を記述するためのプロパティ用語 ※-90から+90で記載 The latitude. Note: Specify a value between -90 and +90.
Diagram
Schema Component Representation
<
xsd:element name ="
緯度 "
type ="
ic :緯度-単純型 "/>
Name
緯度経度書式
Type
ic :緯度経度書式-単純型
Nillable
no
Abstract
no
Documentation
度、分、秒の書式を記述するためのプロパティ用語 ※書式はiso6709に準拠する The format to express degree, minutes and seconds. Note: The format shall comply with ISO 6709 standard.
Diagram
Element: 延べ面積
Name
延べ面積
Type

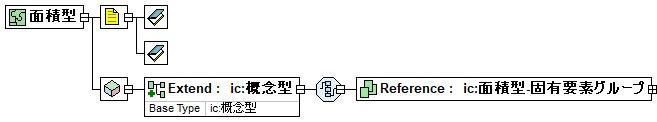

ic :面積型
Nillable
yes
Abstract
no
Documentation
建物の延べ床面積を記述するためのプロパティ用語 The total floor area of a building.
Diagram
XML Instance Representation
<
ic :延べ面積
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :延べ面積>
Schema Component Representation
<
xsd:element name ="
延べ面積 "
type ="
ic :面積型 "
nillable ="
true "/>
Name
下位コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
当該コードの下位に位置するコードを記述するためのプロパティ用語 The lower-level code of the code concerned.
Diagram
XML Instance Representation
<
ic :下位コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :下位コード>
Schema Component Representation
<
xsd:element name ="
下位コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 下限値
Name
下限値
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
範囲制約の下限値を記述するためのプロパティ用語 The lower limit of the range of a restriction.
Diagram
XML Instance Representation
<
ic :下限値
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :下限値>
Schema Component Representation
<
xsd:element name ="
下限値 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 価格
Name
価格
Type
ic :価格型
Nillable
yes
Abstract
no
Documentation
価格(製品の価格など)を記述するためのプロパティ用語 The price (such as a product price).
Diagram
XML Instance Representation
<
ic :価格
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :価格>
Schema Component Representation
<
xsd:element name ="
価格 "
type ="
ic :価格型 "
nillable ="
true "/>
Element: 画像
Name
画像
Type
ic :画像-単純型
Nillable
no
Abstract
no
Documentation
画像を参照するURLを記述するためのプロパティ用語 The URL that references an image.
Diagram
Schema Component Representation
<
xsd:element name ="
画像 "
type ="
ic :画像-単純型 "/>
Element: 開催期日
Name
開催期日
Type
ic :開催期日-単純型
Nillable
no
Abstract
no
Documentation
スケジュールが有効となる日を記述するためのプロパティ用語 ※スケジュールの種別が「週間」の場合は曜日、「月間」の場合は月の中の日、「年間」の場合は年の中の月日を指定する。 The day on which the schedule becomes effective. Note: If the schedule category is 'weekly', then select a day of the week. If it is 'monthly' or 'yearly', then select a date in the month or the year respectively.
Diagram
Element: 開催場所
Name
開催場所
Type
ic :地物型
Nillable
yes
Abstract
no
Documentation
イベントなどの開催場所を記述するためのプロパティ用語 The venue of a event, etc.
Diagram
XML Instance Representation
<
ic :開催場所
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :開催場所>
Schema Component Representation
<
xsd:element name ="
開催場所 "
type ="
ic :地物型 "
nillable ="
true "/>
Element: 開催日
Name
開催日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
イベントなどが開催される日付を記述するためのプロパティ用語 The date on which an event, etc. is held.
Diagram
XML Instance Representation
<
ic :開催日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :開催日>
Schema Component Representation
<
xsd:element name ="
開催日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 開始時間
Name
開始時間
Type
ic :開始時間-単純型
Nillable
no
Abstract
no
Documentation
場所やサービスなどの開始時間を記述するためのプロパティ用語 The starting time of a place or service, etc.
Diagram
Element: 開始日
Name
開始日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
イベントなどの開始日を記述するためのプロパティ用語 The starting date of an event, etc.
Diagram
XML Instance Representation
<
ic :開始日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :開始日>
Schema Component Representation
<
xsd:element name ="
開始日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 開始日時
Name
開始日時
Type
ic :日時型
Nillable
yes
Abstract
no
Documentation
期間の開始日時を記述するためのプロパティ用語 The start date and time of a period.
Diagram
XML Instance Representation
<
ic :開始日時
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :開始日時>
Schema Component Representation
<
xsd:element name ="
開始日時 "
type ="
ic :日時型 "
nillable ="
true "/>
Name
外部利用可否
Type
ic :外部利用可否-単純型
Nillable
no
Abstract
no
Documentation
施設や設備などの外部利用可否の記述のためのプロパティ用語 The textual description of whether or not a facility or equipment is available for use by outsiders.
Diagram

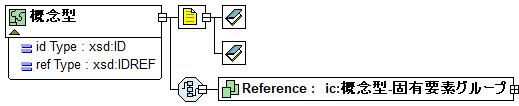

Element: 概念
Name
概念
Type
ic :概念型
Nillable
yes
Abstract
no
Documentation
全ての型のベースとなる基本型としてのクラス用語 A class term that serves as the base type for all types.
Diagram
XML Instance Representation
<
ic :概念
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :概念>
Schema Component Representation
<
xsd:element name ="
概念 "
type ="
ic :概念型 "
nillable ="
true "/>
Element: 概要
Schema Component Representation
<
xsd:element name ="
概要 "
type ="
ic :概要-単純型 "/>
Element: 活動
Name
活動
Type
ic :活動型
Nillable
yes
Abstract
no
Documentation
組織などの活動を記述するためのプロパティ用語 The activity of an organization, etc.
Diagram
XML Instance Representation
<
ic :活動
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :活動>
Schema Component Representation
<
xsd:element name ="
活動 "
type ="
ic :活動型 "
nillable ="
true "/>
Element: 活動状況
Name
活動状況
Type
ic :状況型
Nillable
yes
Abstract
no
Documentation
組織などの活動状況を記述するためのプロパティ用語 The activity status of an organization, etc.
Diagram
XML Instance Representation
<
ic :活動状況
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :活動状況>
Schema Component Representation
<
xsd:element name ="
活動状況 "
type ="
ic :状況型 "
nillable ="
true "/>
Element: 管理者
Name
管理者
Type
ic :実体型
Nillable
yes
Abstract
no
Documentation
管理している組織や人を記述するためのプロパティ用語 The organization or person in charge of maintenance.
Diagram
XML Instance Representation
<
ic :管理者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :管理者>
Schema Component Representation
<
xsd:element name ="
管理者 "
type ="
ic :実体型 "
nillable ="
true "/>

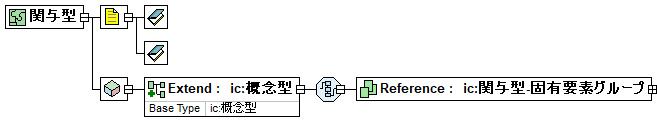

Element: 関与
Name
関与
Type
ic :関与型
Nillable
yes
Abstract
no
Documentation
関連する組織や人(関連性の記述を含む)を記述するためのプロパティ用語 The associated organization or person (including a description of the relationship).
Diagram
XML Instance Representation
<
ic :関与
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :関与>
Schema Component Representation
<
xsd:element name ="
関与 "
type ="
ic :関与型 "
nillable ="
true "/>
Element: 関与者
Name
関与者
Type
ic :実体型
Nillable
yes
Abstract
no
Documentation
関連する組織や人を記述するためのプロパティ用語 The associated organization or person.
Diagram
XML Instance Representation
<
ic :関与者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :関与者>
Schema Component Representation
<
xsd:element name ="
関与者 "
type ="
ic :実体型 "
nillable ="
true "/>
XML Instance Representation
<
ic :関連イベント
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :関連イベント>
Schema Component Representation
<
xsd:element name ="
関連イベント "
type ="
ic :イベント型 "
nillable ="
true "/>
Name
関連コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
当該コードに関連するコードを記述するためのプロパティ用語 The code related to the code concerned.
Diagram
XML Instance Representation
<
ic :関連コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :関連コード>
Schema Component Representation
<
xsd:element name ="
関連コード "
type ="
ic :コード型 "
nillable ="
true "/>

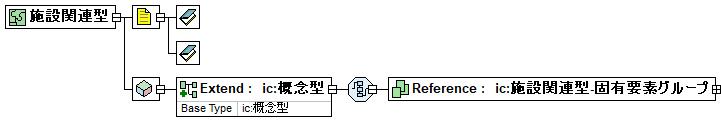

Element: 関連施設
Name
関連施設
Type
ic :施設関連型
Nillable
yes
Abstract
no
Documentation
関連する施設(上位施設、下位施設など)を記述するためのプロパティ用語 The associated facility (such as a parent or affiliated facility).
Diagram
XML Instance Representation
<
ic :関連施設
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :関連施設>
Schema Component Representation
<
xsd:element name ="
関連施設 "
type ="
ic :施設関連型 "
nillable ="
true "/>
Element: 関連人員
Name
関連人員
Type
ic :人数型
Nillable
yes
Abstract
no
Documentation
関連する人員の人数(従業員数など)を記述するためのプロパティ用語 The number of personnel involved (such as the number of employees).
Diagram
XML Instance Representation
<
ic :関連人員
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :関連人員>
Schema Component Representation
<
xsd:element name ="
関連人員 "
type ="
ic :人数型 "
nillable ="
true "/>
Element: 関連組織
Name
関連組織
Type
ic :組織関連型
Nillable
yes
Abstract
no
Documentation
関連する組織を記述するためのプロパティ用語 The associated organization.
Diagram
XML Instance Representation
<
ic :関連組織
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :関連組織>
Schema Component Representation
<
xsd:element name ="
関連組織 "
type ="
ic :組織関連型 "
nillable ="
true "/>
Element: 寄与者
Name
寄与者
Type
ic :実体型
Nillable
yes
Abstract
no
Documentation
文書の内容になんらかの寄与、貢献をした実体を記述するためのプロパティ用語 The entity responsible for making contributions to a document.
Diagram
XML Instance Representation
<
ic :寄与者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :寄与者>
Schema Component Representation
<
xsd:element name ="
寄与者 "
type ="
ic :実体型 "
nillable ="
true "/>
Element: 期間
XML Instance Representation
<
ic :期間
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :期間>
Schema Component Representation
<
xsd:element name ="
期間 "
type ="
ic :期間スケジュール型 "
nillable ="
true "/>
Name
期間スケジュール
Type
ic :期間スケジュール型
Nillable
yes
Abstract
no
Documentation

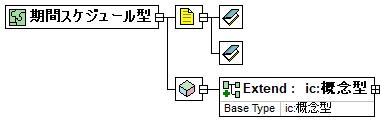

期間やスケジュールを表現するためのクラス用語 A class term to express a period or schedule.
Diagram
XML Instance Representation
<
ic :期間スケジュール
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :期間スケジュール>
Schema Component Representation
<
xsd:element name ="
期間スケジュール "
type ="
ic :期間スケジュール型 "
nillable ="
true "/>
Element: 期間制約
Name
期間制約
Type
ic :期間制約型
Nillable
yes
Abstract
no
Documentation
対象となる事物の制約条件を期間によって指定するためのクラス用語 A class term to express a restriction on a targeted thing by means of a period.
Diagram
XML Instance Representation
<
ic :期間制約
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :期間制約>
Schema Component Representation
<
xsd:element name ="
期間制約 "
type ="
ic :期間制約型 "
nillable ="
true "/>
Element: 規制情報
Name
規制情報
Type
ic :規制情報-単純型
Nillable
no
Abstract
no
Documentation
規制に関する情報(取り扱い上の注意など)を記述するためのプロパティ用語 The regulatory information (including handling precautions).
Diagram

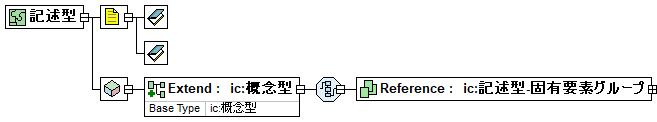

Element: 記述
Name
記述
Type
ic :記述型
Nillable
yes
Abstract
no
Documentation
種別付きの説明文を記述するためのプロパティ用語 A explanation for the thing.
Diagram
XML Instance Representation
<
ic :記述
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :記述>
Schema Component Representation
<
xsd:element name ="
記述 "
type ="
ic :記述型 "
nillable ="
true "/>
Element: 記録形式
Name
記録形式
Type
ic :記録形式-単純型
Nillable
no
Abstract
no
Documentation
文書のファイルの記録形式、物理媒体又は次元を記述するためのプロパティ用語 The file format, physical medium, or dimensions of a document.
Diagram
Name
記録形式コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
文書のファイルの記録形式、物理媒体又は次元のコードを記述するためのプロパティ用語 The code specifying a file format, physical medium, or dimensions of a document.
Diagram
XML Instance Representation
<
ic :記録形式コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :記録形式コード>
Schema Component Representation
<
xsd:element name ="
記録形式コード "
type ="
ic :コード型 "
nillable ="
true "/>
Name
境界を含まない下限値
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
範囲制約の境界を含まない下限値を記述するためのプロパティ用語 The lower limit of the range of a restriction, which excludes the boundary.
Diagram
XML Instance Representation
<
ic :境界を含まない下限値
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :境界を含まない下限値>
Schema Component Representation
<
xsd:element name ="
境界を含まない下限値 "
type ="
ic :数量型 "
nillable ="
true "/>
Name
境界を含まない上限値
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
範囲制約の境界を含まない上限値を記述するためのプロパティ用語 The upper limit of the range of s restriction, which excludes the boundary.
Diagram
XML Instance Representation
<
ic :境界を含まない上限値
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :境界を含まない上限値>
Schema Component Representation
<
xsd:element name ="
境界を含まない上限値 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 業務組織
Name
業務組織
Type
ic :業務組織型
Nillable
yes
Abstract
no
Documentation
業務組織を表現するためのクラス用語 A class term to express a business organization.
Diagram
XML Instance Representation
<
ic :業務組織
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :業務組織>
Schema Component Representation
<
xsd:element name ="
業務組織 "
type ="
ic :業務組織型 "
nillable ="
true "/>

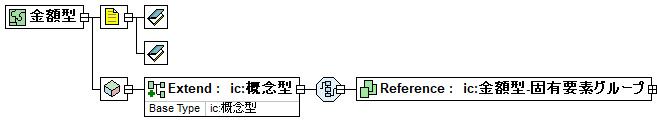

Element: 金額
XML Instance Representation
<
ic :金額
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :金額>
Schema Component Representation
<
xsd:element name ="
金額 "
type ="
ic :金額型 "
nillable ="
true "/>
Element: 区
Name
区
Type
ic :区-単純型
Nillable
no
Abstract
no
Documentation
政令指定都市の区の名前を記述するためのプロパティ用語 The name of a ward in a ordinance-designated city.
Diagram
Schema Component Representation
<
xsd:element name ="
区 "
type ="
ic :区-単純型 "/>
Element: 形態
Name
形態
Type
ic :形態-単純型
Nillable
no
Abstract
no
Documentation
製品などの形態の説明を記述するためのプロパティ用語 The description of the form of a product, etc.
Diagram
Schema Component Representation
<
xsd:element name ="
形態 "
type ="
ic :形態-単純型 "/>
Name
携帯電話番号
Type
ic :電話番号型
Nillable
yes
Abstract
no
Documentation
携帯電話番号を記述するためのプロパティ用語 ※0-9 の数字及び + - ( ) , の文字のみを使用 The cellular phone number. Note: Use '0 to 9' numeric characters and 'plus '+', minus '-', opening parenthesis '(', closing parenthesis ')', and comma ',' 'characters only.
Diagram
XML Instance Representation
<
ic :携帯電話番号
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
xsd :string </
ic :携帯電話番号>
Schema Component Representation
<
xsd:element name ="
携帯電話番号 "
type ="
ic :電話番号型 "
nillable ="
true "/>
Element: 経度
Name
経度
Type
ic :経度-単純型
Nillable
no
Abstract
no
Documentation
経度を記述するためのプロパティ用語 ※-180から+180で記載 The longitude. Note: Specify a value between -180 and +180.
Diagram
Schema Component Representation
<
xsd:element name ="
経度 "
type ="
ic :経度-単純型 "/>
Element: 月
Name
月
Type
ic :月-単純型
Nillable
no
Abstract
no
Documentation
日付や日時などの月の値を記述するためのプロパティ用語 The value of month in date, and date and time.
Diagram
Schema Component Representation
<
xsd:element name ="
月 "
type ="
ic :月-単純型 "/>
Element: 建築面積
Name
建築面積
Type
ic :面積型
Nillable
yes
Abstract
no
Documentation
建築面積を記述するためのプロパティ用語 The building area.
Diagram
XML Instance Representation
<
ic :建築面積
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :建築面積>
Schema Component Representation
<
xsd:element name ="
建築面積 "
type ="
ic :面積型 "
nillable ="
true "/>
Element: 建物
XML Instance Representation
<
ic :建物
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :建物>
Schema Component Representation
<
xsd:element name ="
建物 "
type ="
ic :建物型 "
nillable ="
true "/>
Element: 権利管理
Name
権利管理
Type
ic :文書型
Nillable
yes
Abstract
no
Documentation
文書に含まれる、又はかかわる権利管理に関する情報を記述するためのプロパティ用語 The information about rights held in and over a document.
Diagram
XML Instance Representation
<
ic :権利管理
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :権利管理>
Schema Component Representation
<
xsd:element name ="
権利管理 "
type ="
ic :文書型 "
nillable ="
true "/>
Element: 原産国
Name
原産国コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
原産国を表すコードを記述するためのプロパティ用語 The code specifying a country of origin.
Diagram
XML Instance Representation
<
ic :原産国コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :原産国コード>
Schema Component Representation
<
xsd:element name ="
原産国コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 言語
Name
言語
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
文書の言語を記述するためのプロパティ用語 The language of a document.
Diagram
XML Instance Representation
<
ic :言語
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :言語>
Schema Component Representation
<
xsd:element name ="
言語 "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 構成員
XML Instance Representation
<
ic :構成員
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :構成員>
Schema Component Representation
<
xsd:element name ="
構成員 "
type ="
ic :人型 "
nillable ="
true "/>
Element: 構造
Name
構造
Type
ic :構造-単純型
Nillable
no
Abstract
no
Documentation
建物などの構造の表記を記述するためのプロパティ用語 The structure of a building, etc. expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
構造 "
type ="
ic :構造-単純型 "/>
Element: 購入価格
Name
購入価格
Type
ic :金額型
Nillable
yes
Abstract
no
Documentation
購入価格を記述するためのプロパティ用語 The purchase price.
Diagram
XML Instance Representation
<
ic :購入価格
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :購入価格>
Schema Component Representation
<
xsd:element name ="
購入価格 "
type ="
ic :金額型 "
nillable ="
true "/>
Element: 高さ
Name
高さ
Type
ic :長さ型
Nillable
yes
Abstract
no
Documentation
形状の高さを記述するためのプロパティ用語 The height of the shape.
Diagram
XML Instance Representation
<
ic :高さ
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :高さ>
Schema Component Representation
<
xsd:element name ="
高さ "
type ="
ic :長さ型 "
nillable ="
true "/>
Element: 号
Name
号
Type
ic :号-単純型
Nillable
no
Abstract
no
Documentation
号、住居番号の表記を記述するためのプロパティ用語 The building number or house number expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
号 "
type ="
ic :号-単純型 "/>
Element: 国
Schema Component Representation
<
xsd:element name ="
国 "
type ="
ic :国-単純型 "/>
Element: 国コード
Name
国コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
国のコードを記述するためのプロパティ用語 The code specifying a country.
Diagram
XML Instance Representation
<
ic :国コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :国コード>
Schema Component Representation
<
xsd:element name ="
国コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 国籍
Name
国籍
Type
ic :国籍-単純型
Nillable
no
Abstract
no
Documentation
国籍の表記を記述するためのプロパティ用語 The nationality expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
国籍 "
type ="
ic :国籍-単純型 "/>
Name
国籍コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
国籍コードを記述するためのプロパティ用語 ※住民基本台帳で利用されているものを使用 The code specifying a nationality. Note: Use the code in Basic Resident Registration.
Diagram
XML Instance Representation
<
ic :国籍コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :国籍コード>
Schema Component Representation
<
xsd:element name ="
国籍コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 座標
Name
座標
Type
ic :座標型
Nillable
yes
Abstract
no
Documentation
座標を表現するためのクラス用語 A class term to express latitude-longitude coordinates.
Diagram
XML Instance Representation
<
ic :座標
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :座標>
Schema Component Representation
<
xsd:element name ="
座標 "
type ="
ic :座標型 "
nillable ="
true "/>
Name
座標データ
Type
ic :座標データ-単純型
Nillable
no
Abstract
no
Documentation
点、線、面などを表現するデータ文字列の書式を記述するためのプロパティ用語 The format of a data string to express points, lines, and planes.
Diagram
Name
座標データ書式
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
点、線、面などを表現するデータ文字列の書式を表すコードを記述するためのプロパティ用語 The code specifying a format of a data string to express points, lines, and planes.
Diagram
XML Instance Representation
<
ic :座標データ書式
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :座標データ書式>
Schema Component Representation
<
xsd:element name ="
座標データ書式 "
type ="
ic :コード型 "
nillable ="
true "/>
Name
座標参照系
Type
ic :ID型
Nillable
yes
Abstract
no
Documentation
座標の参照系を記述するためのプロパティ用語 The reference system of latitude-longitude coordinates.
Diagram
XML Instance Representation
<
ic :座標参照系
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :座標参照系>
Schema Component Representation
<
xsd:element name ="
座標参照系 "
type ="
ic :ID型 "
nillable ="
true "/>
Name
最高の高さ
Type
ic :長さ型
Nillable
yes
Abstract
no
Documentation
最高点の高さを記述するためのプロパティ用語 The height at the highest point.
Diagram
XML Instance Representation
<
ic :最高の高さ
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :最高の高さ>
Schema Component Representation
<
xsd:element name ="
最高の高さ "
type ="
ic :長さ型 "
nillable ="
true "/>
Element: 作成者
Name
作成者
Type
ic :実体型
Nillable
yes
Abstract
no
Documentation
文書の内容の作成に主たる責任をもつ実体を記述するためのプロパティ用語 The entity primarily responsible for making a document.
Diagram
XML Instance Representation
<
ic :作成者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :作成者>
Schema Component Representation
<
xsd:element name ="
作成者 "
type ="
ic :実体型 "
nillable ="
true "/>
Element: 参加方法
Name
参加方法
Type
ic :参加方法-単純型
Nillable
no
Abstract
no
Documentation
イベントなどへの参加方法の説明を記述するためのプロパティ用語 The explanation on how to join an event, etc.
Diagram
Element: 参照
Name
参照
Type
ic :参照型
Nillable
yes
Abstract
no
Documentation
追加情報などを参照するURLを記述するためのプロパティ用語 The URL that references additional information.
Diagram
XML Instance Representation
<
ic :参照
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :参照>
Schema Component Representation
<
xsd:element name ="
参照 "
type ="
ic :参照型 "
nillable ="
true "/>
Element: 参照先
Name
参照先
Type
ic :参照先-単純型
Nillable
no
Abstract
no
Documentation
追加情報などを参照するURLを記述するためのプロパティ用語 The URL that refers to additional information.
Diagram
Element: 使用期限
Name
使用期限
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
使用期限を記述するためのプロパティ用語 The expiration date by which a product should be used.
Diagram
XML Instance Representation
<
ic :使用期限
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :使用期限>
Schema Component Representation
<
xsd:element name ="
使用期限 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 使用方法
Name
使用方法
Type
ic :使用方法-単純型
Nillable
no
Abstract
no
Documentation
使用方法の説明を記述するためのプロパティ用語 The explanation of usage instructions.
Diagram
Element: 始点
Name
始点
Type
ic :地物型
Nillable
yes
Abstract
no
Documentation
始点となる地物を記述するためのプロパティ用語 The feature that serves as an origin.
Diagram
XML Instance Representation
<
ic :始点
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :始点>
Schema Component Representation
<
xsd:element name ="
始点 "
type ="
ic :地物型 "
nillable ="
true "/>
Element: 始点備考
Element: 市区町村
Name
市区町村コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
市区町村のコードを記述するためのプロパティ用語 The code specifying a municipality.
Diagram
XML Instance Representation
<
ic :市区町村コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :市区町村コード>
Schema Component Representation
<
xsd:element name ="
市区町村コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 施設
XML Instance Representation
<
ic :施設
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :施設>
Schema Component Representation
<
xsd:element name ="
施設 "
type ="
ic :施設型 "
nillable ="
true "/>
Element: 施設関連
Name
施設関連
Type
ic :施設関連型
Nillable
yes
Abstract
no
Documentation
施設の関連を表現するためのクラス用語 A class term to express an associated facility.
Diagram
XML Instance Representation
<
ic :施設関連
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :施設関連>
Schema Component Representation
<
xsd:element name ="
施設関連 "
type ="
ic :施設関連型 "
nillable ="
true "/>
Name
死亡年月日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
死亡年月日を記述するためのプロパティ用語 The date of death.
Diagram
XML Instance Representation
<
ic :死亡年月日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :死亡年月日>
Schema Component Representation
<
xsd:element name ="
死亡年月日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 氏名
Name
氏名
Type
ic :氏名型
Nillable
yes
Abstract
no
Documentation
人の氏名を記述するためのプロパティ用語 The name of a person.
Diagram
XML Instance Representation
<
ic :氏名
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :氏名>
Schema Component Representation
<
xsd:element name ="
氏名 "
type ="
ic :氏名型 "
nillable ="
true "/>
Name
資源タイプ
Type
ic :資源タイプ-単純型
Nillable
no
Abstract
no
Documentation
文書の性質又はジャンルを記述するためのプロパティ用語 The nature or genre of a document.
Diagram
Element: 資本金
Name
資本金
Type
ic :金額型
Nillable
yes
Abstract
no
Documentation
法人などの資本金を記述するためのプロパティ用語 The capital of a corporation.
Diagram
XML Instance Representation
<
ic :資本金
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :資本金>
Schema Component Representation
<
xsd:element name ="
資本金 "
type ="
ic :金額型 "
nillable ="
true "/>
Element: 事業種目
Name
事業種目
Type
ic :事業種目-単純型
Nillable
no
Abstract
no
Documentation
事業の種類の表記(販売業など)を記述するためのプロパティ用語 The category of a business (such as a distributor) expressed as text.
Diagram
Name
事業年度開始日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
事業年度の開始日を記述するためのプロパティ用語 The start date of the business year.
Diagram
XML Instance Representation
<
ic :事業年度開始日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :事業年度開始日>
Schema Component Representation
<
xsd:element name ="
事業年度開始日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 事物
Name
事物
Type
ic :事物型
Nillable
yes
Abstract
no
Documentation
識別可能なことやものを表すためのクラス用語 A class term to represent an identifiable thing.
Diagram
XML Instance Representation
<
ic :事物
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :事物>
Schema Component Representation
<
xsd:element name ="
事物 "
type ="
ic :事物型 "
nillable ="
true "/>
Element: 時
Name
時
Type
ic :時-単純型
Nillable
no
Abstract
no
Documentation
日時などの時の値を記述するためのプロパティ用語 The value of time in date and time.
Diagram
Schema Component Representation
<
xsd:element name ="
時 "
type ="
ic :時-単純型 "/>
Element: 時間
Name
時間
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
所要時間を記述するためのプロパティ用語 The amount of time required.
Diagram
XML Instance Representation
<
ic :時間
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :時間>
Schema Component Representation
<
xsd:element name ="
時間 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 時間帯
Name
時間帯
Type
ic :時間帯-単純型
Nillable
no
Abstract
no
Documentation
時間帯を記述するためのプロパティ用語 ※協定世界時からの時間差 The time zone. Note: The time difference from the Coordinated Universal Time.
Diagram
Name
自動認識ID
Type
ic :自動認識ID-単純型
Nillable
no
Abstract
no
Documentation
自動認識ID(バーコードや二次元コードの画像など)が表すURLを記述するためのプロパティ用語 The URL expressed by the automatic recognition identifier (such as an image of bar code and two-dimensional code).
Diagram
Element: 識別値
Name
識別値
Type
xsd :string
Nillable
no
Abstract
no
Documentation
IDやコードの値を記述するためのプロパティ用語 The value of an identifier or code.
Diagram
Schema Component Representation
<
xsd:element name ="
識別値 "
type ="
xsd :string"/>
Element: 実体
Name
実体
Type
ic :実体型
Nillable
yes
Abstract
no
Documentation
実体を表現するためのクラス用語 A class term to express an entity.
Diagram
XML Instance Representation
<
ic :実体
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :実体>
Schema Component Representation
<
xsd:element name ="
実体 "
type ="
ic :実体型 "
nillable ="
true "/>
Element: 主要用途
Name
主要用途
Type
ic :主要用途-単純型
Nillable
no
Abstract
no
Documentation
建物などの主要用途の表記を記述するためのプロパティ用語 The major use of a building, etc. expressed as text.
Diagram
Element: 種別
Name
種別
Type
ic :種別-単純型
Nillable
no
Abstract
no
Documentation
様々な事物の種別の表記を記述するためのプロパティ用語 The category of various things expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
種別 "
type ="
ic :種別-単純型 "/>
Name
種別コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
種別コードを記述するためのプロパティ用語 The code specifying a category.
Diagram
XML Instance Representation
<
ic :種別コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :種別コード>
Schema Component Representation
<
xsd:element name ="
種別コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 収容人数
Name
収容人数
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
収容人数を記述するためのプロパティ用語 The maximum number of people that a facility can accommodate.
Diagram
XML Instance Representation
<
ic :収容人数
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :収容人数>
Schema Component Representation
<
xsd:element name ="
収容人数 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 収容台数
Name
収容台数
Type
ic :収容台数-単純型
Nillable
no
Abstract
no
Documentation
駐車場の収容可能台数を記述するためのプロパティ用語 The maximum number of vehicles that a parking area can accommodate.
Diagram
Element: 終点
Name
終点
Type
ic :地物型
Nillable
yes
Abstract
no
Documentation
終点となる地物を記述するためのプロパティ用語 The feature that serves as a destination.
Diagram
XML Instance Representation
<
ic :終点
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :終点>
Schema Component Representation
<
xsd:element name ="
終点 "
type ="
ic :地物型 "
nillable ="
true "/>
Element: 終点備考
Element: 終了時間
Name
終了時間
Type
ic :終了時間-単純型
Nillable
no
Abstract
no
Documentation
場所やサービスなどの終了時間を記述するためのプロパティ用語 The closing time of a place or service, etc.
Diagram
Element: 終了日
Name
終了日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
イベントなどの終了日を記述するためのプロパティ用語 The closing date of the event, etc.
Diagram
XML Instance Representation
<
ic :終了日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :終了日>
Schema Component Representation
<
xsd:element name ="
終了日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 終了日時
Name
終了日時
Type
ic :日時型
Nillable
yes
Abstract
no
Documentation
期間の終了日時を記述するためのプロパティ用語 The end date and time of a period.
Diagram
XML Instance Representation
<
ic :終了日時
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :終了日時>
Schema Component Representation
<
xsd:element name ="
終了日時 "
type ="
ic :日時型 "
nillable ="
true "/>
Element: 住所
XML Instance Representation
<
ic :住所
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :住所>
Schema Component Representation
<
xsd:element name ="
住所 "
type ="
ic :住所型 "
nillable ="
true "/>
Name
住所コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
住所のコードを記述するためのプロパティ用語 ※地方公共団体情報システム機構の地方公共団体コード住所など The code specifying an address. Note: Such as Local Government Code Address by Japan Agency for Local Authority Information Systems.
Diagram
XML Instance Representation
<
ic :住所コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :住所コード>
Schema Component Representation
<
xsd:element name ="
住所コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 重量
XML Instance Representation
<
ic :重量
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :重量>
Schema Component Representation
<
xsd:element name ="
重量 "
type ="
ic :重量型 "
nillable ="
true "/>
Element: 出処
Name
出処
Type
ic :出処-単純型
Nillable
no
Abstract
no
Documentation
当該文書の由来となるような関係の文書源を記述するためのプロパティ用語 The related document from which a described document is derived.
Diagram
Schema Component Representation
<
xsd:element name ="
出処 "
type ="
ic :出処-単純型 "/>
Element: 出生国
Name
出生国コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
生まれた国のコードを記述するためのプロパティ用語 The code specifying a country of birth.
Diagram
XML Instance Representation
<
ic :出生国コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :出生国コード>
Schema Component Representation
<
xsd:element name ="
出生国コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 出生地
Name
出生地
Type
ic :住所型
Nillable
yes
Abstract
no
Documentation
生まれた場所を記述するためのプロパティ用語 The birth place.
Diagram
XML Instance Representation
<
ic :出生地
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :出生地>
Schema Component Representation
<
xsd:element name ="
出生地 "
type ="
ic :住所型 "
nillable ="
true "/>
Element: 竣工日
Name
竣工日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
建物の竣工日を記述するためのプロパティ用語 The completion date of a building.
Diagram
XML Instance Representation
<
ic :竣工日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :竣工日>
Schema Component Representation
<
xsd:element name ="
竣工日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 所有者
XML Instance Representation
<
ic :所有者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :所有者>
Schema Component Representation
<
xsd:element name ="
所有者 "
type ="
ic :実体型 "
nillable ="
true "/>
Element: 消費期限
Name
消費期限
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
消費期限を記述するためのプロパティ用語 The expiration date by which a product should be consumed.
Diagram
XML Instance Representation
<
ic :消費期限
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :消費期限>
Schema Component Representation
<
xsd:element name ="
消費期限 "
type ="
ic :日付型 "
nillable ="
true "/>
Name
詳細スケジュール
Type
ic :詳細スケジュール型
Nillable
yes
Abstract
no
Documentation
(将来的に整備する予定)施設等のオープン日とオープン時間を表現するためのクラス用語。複数のスケジュールが列挙された場合はそれらの和を取るものとする (To be defined in the future)A class term to express opening time and day of a facility. When multiple schedules are listed, enumerate them.
Diagram
XML Instance Representation
<
ic :詳細スケジュール
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :詳細スケジュール>
Schema Component Representation
<
xsd:element name ="
詳細スケジュール "
type ="
ic :詳細スケジュール型 "
nillable ="
true "/>
Name
詳細スケジュール規則
Type
ic :詳細スケジュール規則型
Nillable
yes
Abstract
no
Documentation
(将来的に整備する予定)繰り返し型のスケジュールを定義するためのクラス用語 (To be defined in the future) class term to define a repetitive schedule.
Diagram
XML Instance Representation
<
ic :詳細スケジュール規則
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :詳細スケジュール規則>
Schema Component Representation
<
xsd:element name ="
詳細スケジュール規則 "
type ="
ic :詳細スケジュール規則型 "
nillable ="
true "/>
Element: 賞味期限
Name
賞味期限
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
賞味期限を記述するためのプロパティ用語 The best-before-date of a product.
Diagram
XML Instance Representation
<
ic :賞味期限
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :賞味期限>
Schema Component Representation
<
xsd:element name ="
賞味期限 "
type ="
ic :日付型 "
nillable ="
true "/>
Name
上位コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
当該コードの上位に位置するコードを記述するためのプロパティ用語 The upper-level code of the code concerned.
Diagram
XML Instance Representation
<
ic :上位コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :上位コード>
Schema Component Representation
<
xsd:element name ="
上位コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 上限値
Name
上限値
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
範囲制約の上限値を記述するためのプロパティ用語 The upper limit of the range of a restriction.
Diagram
XML Instance Representation
<
ic :上限値
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :上限値>
Schema Component Representation
<
xsd:element name ="
上限値 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 乗数
Name
乗数
Type
ic :乗数-単純型
Nillable
no
Abstract
no
Documentation
基本単位に対する変換乗数を記述するためのプロパティ用語 The conversion multiplier to be applied to the base unit.
Diagram
Schema Component Representation
<
xsd:element name ="
乗数 "
type ="
ic :乗数-単純型 "/>
Element: 場所
XML Instance Representation
<
ic :場所
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :場所>
Schema Component Representation
<
xsd:element name ="
場所 "
type ="
ic :場所型 "
nillable ="
true "/>
Element: 状況
Name
状況
Type
ic :状況型
Nillable
yes
Abstract
no
Documentation
状況を表現するためのクラス用語 A class term to express state of affairs.
Diagram
XML Instance Representation
<
ic :状況
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :状況>
Schema Component Representation
<
xsd:element name ="
状況 "
type ="
ic :状況型 "
nillable ="
true "/>
Element: 状態
Schema Component Representation
<
xsd:element name ="
状態 "
type ="
ic :状態-単純型 "/>
Element: 色
Schema Component Representation
<
xsd:element name ="
色 "
type ="
ic :色-単純型 "/>
Element: 身長
Name
身長
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
人の身長を記述するためのプロパティ用語 A height of the person.
Diagram
XML Instance Representation
<
ic :身長
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :身長>
Schema Component Representation
<
xsd:element name ="
身長 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 人
Name
人
Type
ic :人型
Nillable
yes
Abstract
no
Documentation
人の情報を表現するためのクラス用語 A class term to express information of a person.
Diagram
XML Instance Representation
<
ic :人
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :人>
Schema Component Representation
<
xsd:element name ="
人 "
type ="
ic :人型 "
nillable ="
true "/>
Element: 人数
Schema Component Representation
<
xsd:element name ="
人数 "
type ="
ic :人数-単純型 "/>
Element: 数値
Schema Component Representation
<
xsd:element name ="
数値 "
type ="
ic :数値-単純型 "/>
Element: 数量
Name
数量
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
数量を表現するためのクラス用語 A class term to express quantity.
Diagram
XML Instance Representation
<
ic :数量
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :数量>
Schema Component Representation
<
xsd:element name ="
数量 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 制約
Name
制約
Type
ic :制約型
Nillable
yes
Abstract
no
Documentation
対象となる事物の制約を記述するためのプロパティ用語 The restriction on a thing to be targeted.
Diagram
XML Instance Representation
<
ic :制約
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :制約>
Schema Component Representation
<
xsd:element name ="
制約 "
type ="
ic :制約型 "
nillable ="
true "/>
Name
制約コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
制約コードを記述するためのプロパティ用語 The code specifying a restriction.
Diagram
XML Instance Representation
<
ic :制約コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :制約コード>
Schema Component Representation
<
xsd:element name ="
制約コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 制約対象
Element: 姓
Name
姓
Type
ic :姓-単純型
Nillable
no
Abstract
no
Documentation
氏名の姓の表記を記述するためのプロパティ用語 The family name expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
姓 "
type ="
ic :姓-単純型 "/>
Name
姓カナ表記
Type
ic :姓カナ表記-単純型
Nillable
no
Abstract
no
Documentation
氏名の姓のカタカナ表記を記述するためのプロパティ用語 The textual expression of a family name in Katakana.
Diagram
Name
姓ローマ字表記
Type
ic :姓ローマ字表記-単純型
Nillable
no
Abstract
no
Documentation
氏名の姓のローマ字表記を記述するためのプロパティ用語 The textual expression of a family name in the Roman alphabet.
Diagram
Element: 姓名
Name
姓名
Type
ic :姓名-単純型
Nillable
no
Abstract
no
Documentation
氏名(姓、名)の表記を記述するためのプロパティ用語 The full name (family and given name) expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
姓名 "
type ="
ic :姓名-単純型 "/>
Name
姓名カナ表記
Type
ic :姓名カナ表記-単純型
Nillable
no
Abstract
no
Documentation
氏名(姓、名)のカタカナ表記を記述するためのプロパティ用語 The textual expression of a full name (family and given name) in Katakana.
Diagram
Name
姓名ローマ字表記
Type
ic :姓名ローマ字表記-単純型
Nillable
no
Abstract
no
Documentation
氏名(姓、名)のローマ字表記を記述するためのプロパティ用語 The textual expression of a full name (family and given name) in the Roman alphabet.
Diagram
Element: 性別
Schema Component Representation
<
xsd:element name ="
性別 "
type ="
ic :性別-単純型 "/>
Name
性別コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
性別コードを記述するためのプロパティ用語 The code specifying gender.
Diagram
XML Instance Representation
<
ic :性別コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :性別コード>
Schema Component Representation
<
xsd:element name ="
性別コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 生年月日
Name
生年月日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
生年月日を記述するためのプロパティ用語 The date of birth.
Diagram
XML Instance Representation
<
ic :生年月日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :生年月日>
Schema Component Representation
<
xsd:element name ="
生年月日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 製造者
Name
製造者ID
Type
ic :ID型
Nillable
yes
Abstract
no
Documentation
製造者によって割り当てられたIDを記述するためのプロパティ用語 The identifier assigned by a manufacturer.
Diagram
XML Instance Representation
<
ic :製造者ID
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :製造者ID>
Schema Component Representation
<
xsd:element name ="
製造者ID "
type ="
ic :ID型 "
nillable ="
true "/>
Element: 製造日
Name
製造日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
製造日を記述するためのプロパティ用語 The date of manufacture.
Diagram
XML Instance Representation
<
ic :製造日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :製造日>
Schema Component Representation
<
xsd:element name ="
製造日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 製品
Name
製品
Type
ic :製品型
Nillable
yes
Abstract
no
Documentation
製品を表現するためのクラス用語 A class term to express a product.
Diagram
XML Instance Representation
<
ic :製品
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :製品>
Schema Component Representation
<
xsd:element name ="
製品 "
type ="
ic :製品型 "
nillable ="
true "/>
Element: 製品個品
Name
製品個品
Type
ic :製品個品型
Nillable
yes
Abstract
no
Documentation
製品を個別に表現するためのクラス用語 A class term to express an individual product.
Diagram
XML Instance Representation
<
ic :製品個品
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :製品個品>
Schema Component Representation
<
xsd:element name ="
製品個品 "
type ="
ic :製品個品型 "
nillable ="
true "/>
Element: 設置位置
Name
設置位置
Type
ic :設置位置-単純型
Nillable
no
Abstract
no
Documentation
設備などの設置場所の表記(受付横など)を記述するためのプロパティ用語 The location of an equipment, etc. installed (such as beside a reception desk) expressed as text.
Diagram
Element: 設置者
Name
設置者
Type
ic :組織型
Nillable
yes
Abstract
no
Documentation
設備などを設置した組織を記述するためのプロパティ用語 The organization that installed an equipment, etc.
Diagram
XML Instance Representation
<
ic :設置者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :設置者>
Schema Component Representation
<
xsd:element name ="
設置者 "
type ="
ic :組織型 "
nillable ="
true "/>
Element: 設置地点
Name
設置地点
Type
ic :地物型
Nillable
yes
Abstract
no
Documentation
設備などが設置されている地物(施設や建物など)を記述するためのプロパティ用語 The feature in which an equipment is installed. (Such as a facility or building.)
Diagram
XML Instance Representation
<
ic :設置地点
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :設置地点>
Schema Component Representation
<
xsd:element name ="
設置地点 "
type ="
ic :地物型 "
nillable ="
true "/>
Element: 設置日
Name
設置日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
設備などの設置日を記述するためのプロパティ用語 The installation date of an equipment, etc.
Diagram
XML Instance Representation
<
ic :設置日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :設置日>
Schema Component Representation
<
xsd:element name ="
設置日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 設備
XML Instance Representation
<
ic :設備
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :設備>
Schema Component Representation
<
xsd:element name ="
設備 "
type ="
ic :設備型 "
nillable ="
true "/>
Element: 設立日
Name
設立日
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
組織などの設立日を記述するためのプロパティ用語 The date of establishment of an organization, etc.
Diagram
XML Instance Representation
<
ic :設立日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :設立日>
Schema Component Representation
<
xsd:element name ="
設立日 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 説明
Schema Component Representation
<
xsd:element name ="
説明 "
type ="
ic :説明-単純型 "/>
Element: 組織
XML Instance Representation
<
ic :組織
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :組織>
Schema Component Representation
<
xsd:element name ="
組織 "
type ="
ic :組織型 "
nillable ="
true "/>
Element: 組織関連
Name
組織関連
Type
ic :組織関連型
Nillable
yes
Abstract
no
Documentation
組織の関連を表現するためのクラス用語 A class term to express an association with another organization.
Diagram
XML Instance Representation
<
ic :組織関連
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :組織関連>
Schema Component Representation
<
xsd:element name ="
組織関連 "
type ="
ic :組織関連型 "
nillable ="
true "/>
Element: 組織種別
Name
組織種別
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
組織の種別コード(株式会社など)を記述するためのプロパティ用語 The code specifying the category of an organization (such as a limited corporation).
Diagram
XML Instance Representation
<
ic :組織種別
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :組織種別>
Schema Component Representation
<
xsd:element name ="
組織種別 "
type ="
ic :コード型 "
nillable ="
true "/>
Name
組織種別位置
Type
ic :組織種別位置-単純型
Nillable
no
Abstract
no
Documentation
組織名称中の組織種別の記載位置の表記(前、後、など)を記述するためのプロパティ用語 The position of the organization type description within an organization name (as a prefix or suffix, etc.) expressed as text.
Diagram
Element: 送付先
Name
送付先
Type
ic :送付先-単純型
Nillable
no
Abstract
no
Documentation
郵便物送付先の住所(私書箱など)を記述するためのプロパティ用語 The mailing address (such as a private mail box).
Diagram
Element: 測地高度
Name
測地高度
Type
ic :長さ型
Nillable
yes
Abstract
no
Documentation
測地高度を記述するためのプロパティ用語 The geodetic height.
Diagram
XML Instance Representation
<
ic :測地高度
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :測地高度>
Schema Component Representation
<
xsd:element name ="
測地高度 "
type ="
ic :長さ型 "
nillable ="
true "/>
Element: 体系
Name
体系
Type
ic :ID体系型
Nillable
yes
Abstract
no
Documentation
IDの体系を記述するためのプロパティ用語 The system for specifying identifiers.
Diagram
XML Instance Representation
<
ic :体系
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :体系>
Schema Component Representation
<
xsd:element name ="
体系 "
type ="
ic :ID体系型 "
nillable ="
true "/>
Element: 体重
Name
体重
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
人の体重を記述するためのプロパティ用語 A weight of the person.
Diagram
XML Instance Representation
<
ic :体重
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :体重>
Schema Component Representation
<
xsd:element name ="
体重 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 対応言語
Name
対応言語
Type
ic :対応言語-単純型
Nillable
no
Abstract
no
Documentation
連絡の際に利用可能な言語名を記述するためのプロパティ用語 The language available when contacting.
Diagram
Element: 対象
Name
対象
Type
ic :対象型
Nillable
yes
Abstract
no
Documentation
イベントや制度等の対象となる事物を表すクラス用語 A class term to express a thing to be targeted for an event or system.
Diagram
XML Instance Representation
<
ic :対象
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :対象>
Schema Component Representation
<
xsd:element name ="
対象 "
type ="
ic :対象型 "
nillable ="
true "/>
Element: 代表者
Name
代表者
Type
ic :構成員型
Nillable
yes
Abstract
no
Documentation
組織の代表者を記述するためのプロパティ用語 The representative of an organization.
Diagram
XML Instance Representation
<
ic :代表者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :代表者>
Schema Component Representation
<
xsd:element name ="
代表者 "
type ="
ic :構成員型 "
nillable ="
true "/>
Element: 代理人
Name
代理人
Type
ic :組織関連型
Nillable
yes
Abstract
no
Documentation
法定手続きなどの代理人となる組織を記述するためのプロパティ用語 The organization that acts as agent for legal procedures.
Diagram
XML Instance Representation
<
ic :代理人
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :代理人>
Schema Component Representation
<
xsd:element name ="
代理人 "
type ="
ic :組織関連型 "
nillable ="
true "/>
Element: 単位
Name
単位
Type
ic :単位コード型
Nillable
yes
Abstract
no
Documentation
計測値の単位を表すコードを記述するためのプロパティ用語 The code specifying a unit of measured values.
Diagram
XML Instance Representation
<
ic :単位
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :単位>
Schema Component Representation
<
xsd:element name ="
単位 "
type ="
ic :単位コード型 "
nillable ="
true "/>
Name
単位コード
Type
ic :単位コード型
Nillable
yes
Abstract
no
Documentation
単位コードを表現するためのクラス用語 A class term to express a unit code.
Diagram
XML Instance Representation
<
ic :単位コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :単位コード>
Schema Component Representation
<
xsd:element name ="
単位コード "
type ="
ic :単位コード型 "
nillable ="
true "/>
Element: 単位表記
Name
単位表記
Type
ic :単位表記-単純型
Nillable
no
Abstract
no
Documentation
単位の文字列による表現を記述するためのプロパティ用語 The unit expressed as a string.
Diagram
Element: 担当者名
Name
担当者名
Type
ic :氏名型
Nillable
yes
Abstract
no
Documentation
担当者の氏名を記述するためのプロパティ用語 The name of a contact person.
Diagram
XML Instance Representation
<
ic :担当者名
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :担当者名>
Schema Component Representation
<
xsd:element name ="
担当者名 "
type ="
ic :氏名型 "
nillable ="
true "/>
Name
担当者役職
Type
ic :担当者役職-単純型
Nillable
no
Abstract
no
Documentation
担当者の役職の表記を記述するためのプロパティ用語 The title of a person in charge expressed as text.
Diagram
Element: 地下階数
Name
地下階数
Type
ic :地下階数-単純型
Nillable
no
Abstract
no
Documentation
建物の地下階数を記述するためのプロパティ用語 The number of underground floors of a building.
Diagram
Element: 地上階数
Name
地上階数
Type
ic :地上階数-単純型
Nillable
no
Abstract
no
Documentation
建物の地上階数を記述するためのプロパティ用語 The number of aboveground floors of a building.
Diagram
Element: 地図
Name
地図
Type
ic :地図-単純型
Nillable
no
Abstract
no
Documentation
地図を参照するURLを記述するためのプロパティ用語 The URL that references a map.
Diagram
Schema Component Representation
<
xsd:element name ="
地図 "
type ="
ic :地図-単純型 "/>
Element: 地物
Name
地物
Type
ic :地物型
Nillable
yes
Abstract
no
Documentation
関連する地物(施設、建物、土地など)を記述するためのプロパティ用語 The associated feature (such as a facility, building, or land).
Diagram
XML Instance Representation
<
ic :地物
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :地物>
Schema Component Representation
<
xsd:element name ="
地物 "
type ="
ic :地物型 "
nillable ="
true "/>
Element: 地理座標
Name
地理座標
Type
ic :座標型
Nillable
yes
Abstract
no
Documentation
場所の経緯度座標を記述するためのプロパティ用語 The latitude-longitude coordinates of a location.
Diagram
XML Instance Representation
<
ic :地理座標
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :地理座標>
Schema Component Representation
<
xsd:element name ="
地理座標 "
type ="
ic :座標型 "
nillable ="
true "/>
Name
地理識別子
Type
ic :ID型
Nillable
yes
Abstract
no
Documentation
場所の地理識別子を記述するためのプロパティ用語 The geographical identifier of a location.
Diagram
XML Instance Representation
<
ic :地理識別子
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :地理識別子>
Schema Component Representation
<
xsd:element name ="
地理識別子 "
type ="
ic :ID型 "
nillable ="
true "/>
Element: 駐車場
XML Instance Representation
<
ic :駐車場
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :駐車場>
Schema Component Representation
<
xsd:element name ="
駐車場 "
type ="
ic :駐車場型 "
nillable ="
true "/>
Name
駐車場種別
Type
ic :駐車場種別-単純型
Nillable
no
Abstract
no
Documentation
駐車場の種別の表記を記述するためのプロパティ用語 The category of a parking area expressed as text.
Diagram
Element: 丁目
Name
丁目
Type
ic :丁目-単純型
Nillable
no
Abstract
no
Documentation
丁目の表記を記述するためのプロパティ用語 The city district number expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
丁目 "
type ="
ic :丁目-単純型 "/>
Element: 町名
Name
町名
Type
ic :町名-単純型
Nillable
no
Abstract
no
Documentation
町域、または市区町村の下の行政区分の表記を記述するためのプロパティ用語 The town area or administrative division under municipality expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
町名 "
type ="
ic :町名-単純型 "/>
Element: 長さ
Name
長さ
Type
ic :長さ型
Nillable
yes
Abstract
no
Documentation
形状の長さを記述するためのプロパティ用語 The length of the shape.
Diagram
XML Instance Representation
<
ic :長さ
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :長さ>
Schema Component Representation
<
xsd:element name ="
長さ "
type ="
ic :長さ型 "
nillable ="
true "/>
Element: 通貨
Schema Component Representation
<
xsd:element name ="
通貨 "
type ="
ic :通貨-単純型 "/>
Element: 通称
Name
通称
Type
ic :通称-単純型
Nillable
no
Abstract
no
Documentation
正式な名称以外に一般的に使用されている名称を記述するためのプロパティ用語 The generally used name apart from its official name.
Diagram
Schema Component Representation
<
xsd:element name ="
通称 "
type ="
ic :通称-単純型 "/>
Name
定期スケジュール
Type
ic :定期スケジュール型
Nillable
yes
Abstract
no
Documentation
定期的に繰り返されるスケジュールを表現するクラス用語 A class term to express a schedule that is repeatedly held on a regular basis.
Diagram
XML Instance Representation
<
ic :定期スケジュール
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :定期スケジュール>
Schema Component Representation
<
xsd:element name ="
定期スケジュール "
type ="
ic :定期スケジュール型 "
nillable ="
true "/>
Element: 提供者
Name
提供者
Type
ic :実体型
Nillable
yes
Abstract
no
Documentation
サービス等を提供する組織や人を記述するためのプロパティ用語 The entity such as an organization or person that provide a service, etc.
Diagram
XML Instance Representation
<
ic :提供者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :提供者>
Schema Component Representation
<
xsd:element name ="
提供者 "
type ="
ic :実体型 "
nillable ="
true "/>
Element: 電話番号
Name
電話番号
Type
ic :電話番号型
Nillable
yes
Abstract
no
Documentation
電話番号を記述するためのプロパティ用語 ※0-9 の数字及び + - ( ) , の文字のみを使用 The telephone number. Note: Use '0 to 9' numeric characters and 'plus '+', minus '-', opening parenthesis '(', closing parenthesis ')', and comma ',' 'characters only.
Diagram
XML Instance Representation
<
ic :電話番号
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
xsd :string </
ic :電話番号>
Schema Component Representation
<
xsd:element name ="
電話番号 "
type ="
ic :電話番号型 "
nillable ="
true "/>
Element: 都道府県
Name
都道府県コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
都道府県のコードを記述するためのプロパティ用語 The code specifying a prefecture.
Diagram
XML Instance Representation
<
ic :都道府県コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :都道府県コード>
Schema Component Representation
<
xsd:element name ="
都道府県コード "
type ="
ic :コード型 "
nillable ="
true "/>
Element: 土地
Name
土地
Type
ic :土地型
Nillable
yes
Abstract
no
Documentation
特定の用途に用いられる土地を表現するためのクラス用語 A class term to express a plot of land used for a specific purpose.
Diagram
XML Instance Representation
<
ic :土地
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :土地>
Schema Component Representation
<
xsd:element name ="
土地 "
type ="
ic :土地型 "
nillable ="
true "/>
Element: 内線番号
Name
内線番号
Type
ic :内線番号-単純型
Nillable
no
Abstract
no
Documentation
電話の内線番号を記述するためのプロパティ用語 The extension number of a telephone number.
Diagram
Element: 日
Name
日
Type
ic :日-単純型
Nillable
no
Abstract
no
Documentation
日付や日時などの日の値を記述するためのプロパティ用語 The value of day in date, and date and time.
Diagram
Schema Component Representation
<
xsd:element name ="
日 "
type ="
ic :日-単純型 "/>
Element: 日時
Name
日時
Type
ic :日時型
Nillable
yes
Abstract
no
Documentation
活動などが行われる日時を記述するためのプロパティ用語 The date and time when an activity, etc. are held.
Diagram
XML Instance Representation
<
ic :日時
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :日時>
Schema Component Representation
<
xsd:element name ="
日時 "
type ="
ic :日時型 "
nillable ="
true "/>
Element: 日付
Name
日付
Type
ic :日付型
Nillable
yes
Abstract
no
Documentation
文書のライフサイクルにおけるなんらかの事象に関するある時点又は時間的区間を記述するためのプロパティ用語 The point or period of time associated with an event in the lifecycle of a document.
Diagram
XML Instance Representation
<
ic :日付
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :日付>
Schema Component Representation
<
xsd:element name ="
日付 "
type ="
ic :日付型 "
nillable ="
true "/>
Element: 入数
Name
入数
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
箱などに含まれる物の数量を記述するためのプロパティ用語 The quantity of items contained in a box, etc.
Diagram
XML Instance Representation
<
ic :入数
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :入数>
Schema Component Representation
<
xsd:element name ="
入数 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 年
Name
年
Type
ic :年-単純型
Nillable
no
Abstract
no
Documentation
日付や日時などの年の値を記述するためのプロパティ用語 The value of year in date, and date and time.
Diagram
Schema Component Representation
<
xsd:element name ="
年 "
type ="
ic :年-単純型 "/>
Element: 年号
Name
年号
Type
ic :年号-単純型
Nillable
no
Abstract
no
Documentation
日付や日時などの元号を記述するためのプロパティ用語 The Japanese era in date, and date and time.
Diagram
Schema Component Representation
<
xsd:element name ="
年号 "
type ="
ic :年号-単純型 "/>
Element: 年齢
Name
年齢
Type
ic :数量型
Nillable
yes
Abstract
no
Documentation
人の年齢を記述するためのプロパティ用語 An age of the person.
Diagram
XML Instance Representation
<
ic :年齢
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :年齢>
Schema Component Representation
<
xsd:element name ="
年齢 "
type ="
ic :数量型 "
nillable ="
true "/>
Element: 発行者
Name
発行者
Type
ic :実体型
Nillable
yes
Abstract
no
Documentation
IDやコードリストなどの発行主体を記述するためのプロパティ用語 The issuing entity of an ID system or code list, etc.
Diagram
XML Instance Representation
<
ic :発行者
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :発行者>
Schema Component Representation
<
xsd:element name ="
発行者 "
type ="
ic :実体型 "
nillable ="
true "/>
Element: 発生日
Name
発生日
Type
ic :日時型
Nillable
yes
Abstract
no
Documentation
状況などの発生日時を記述するためのプロパティ用語 The date and time of occurrence of state of affairs, etc.
Diagram
XML Instance Representation
<
ic :発生日
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :発生日>
Schema Component Representation
<
xsd:element name ="
発生日 "
type ="
ic :日時型 "
nillable ="
true "/>
Element: 販売業者
Name
販売業者ID
Type
ic :ID型
Nillable
yes
Abstract
no
Documentation
販売業者によって割り当てられたIDを記述するためのプロパティ用語 The identifier assigned by a distributor.
Diagram
XML Instance Representation
<
ic :販売業者ID
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :販売業者ID>
Schema Component Representation
<
xsd:element name ="
販売業者ID "
type ="
ic :ID型 "
nillable ="
true "/>
Element: 範囲制約
Name
範囲制約
Type
ic :範囲制約型
Nillable
yes
Abstract
no
Documentation
対象となる事物の制約条件を数量の範囲によって指定するためのクラス用語 A class term to express a restriction on a targeted thing by means of a numerical range.
Diagram
XML Instance Representation
<
ic :範囲制約
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :範囲制約>
Schema Component Representation
<
xsd:element name ="
範囲制約 "
type ="
ic :範囲制約型 "
nillable ="
true "/>
Element: 番地
Name
番地
Type
ic :番地-単純型
Nillable
no
Abstract
no
Documentation
番、街区の表記を記述するためのプロパティ用語 The block number or town block number expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
番地 "
type ="
ic :番地-単純型 "/>
Element: 番地補足
Name
番地補足
Type
ic :番地補足-単純型
Nillable
no
Abstract
no
Documentation
番地の前の、「東」「北」「浜」「甲」「イ」などの文字を記述するためのプロパティ用語 The prefix string such as '東 (East)' , '北 (North)', '浜 (Coast)', '甲' and 'イ' (characters representing item number) specified prior to a block number.
Diagram
Element: 備考
Name
備考
Type
ic :備考-単純型
Nillable
no
Abstract
no
Documentation
備考を記述するためのプロパティ用語 ※補足情報などがある場合に記述 The remarks. Note: Specify when there is any additional information.
Diagram
Schema Component Representation
<
xsd:element name ="
備考 "
type ="
ic :備考-単純型 "/>
Name
標準型日時
Type
ic :標準型日時-単純型
Nillable
no
Abstract
no
Documentation
日時を記述するためのプロパティ用語 ※XMLのxsd:dateTime型に準拠したもの The date and time. Note: This shall comply with xsd:date type of XML.
Diagram
Name
標準型日付
Type
ic :標準型日付-単純型
Nillable
no
Abstract
no
Documentation
日付を記述するためのプロパティ用語 ※XMLのxsd:date型に準拠したもの The date. Note: This shall comply with xsd:date type of XML.
Diagram
Element: 表記
Name
表記
Type
ic :表記-単純型
Nillable
no
Abstract
no
Documentation
文字列による表記を記述するためのプロパティ用語 The textual expression using a text string.
Diagram
Schema Component Representation
<
xsd:element name ="
表記 "
type ="
ic :表記-単純型 "/>
Element: 表題
Name
表題
Type
ic :表題-単純型
Nillable
no
Abstract
no
Documentation
文書に与えられた名前を記述するためのプロパティ用語 The name given to a document.
Diagram
Schema Component Representation
<
xsd:element name ="
表題 "
type ="
ic :表題-単純型 "/>
Element: 秒
Name
秒
Type
ic :秒-単純型
Nillable
no
Abstract
no
Documentation
日時などの秒の値を記述するためのプロパティ用語 The value of second in date and time.
Diagram
Schema Component Representation
<
xsd:element name ="
秒 "
type ="
ic :秒-単純型 "/>
Element: 敷地面積
XML Instance Representation
<
ic :敷地面積
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :敷地面積>
Schema Component Representation
<
xsd:element name ="
敷地面積 "
type ="
ic :面積型 "
nillable ="
true "/>
Element: 部屋番号
Name
部屋番号
Type
ic :部屋番号-単純型
Nillable
no
Abstract
no
Documentation
部屋番号の表記(階数、号室など)を記述するためのプロパティ用語 The room number (such as floor and room number) expressed as text.
Diagram
Element: 幅
Name
幅
Type
ic :長さ型
Nillable
yes
Abstract
no
Documentation
形状の幅を記述するためのプロパティ用語 The width of the shape.
Diagram
XML Instance Representation
<
ic :幅
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :幅>
Schema Component Representation
<
xsd:element name ="
幅 "
type ="
ic :長さ型 "
nillable ="
true "/>
Element: 分
Name
分
Type
ic :分-単純型
Nillable
no
Abstract
no
Documentation
日時などの分の値を記述するためのプロパティ用語 The value of minute in date and time.
Diagram
Schema Component Representation
<
xsd:element name ="
分 "
type ="
ic :分-単純型 "/>
Element: 文書
Name
文書
Type
ic :文書型
Nillable
yes
Abstract
no
Documentation
文書の情報を表すクラス用語(Dublin Core Metadata Element Setに準拠) A class term to express information of a document (that complies with Dublin Core Metadata Element Set).
Diagram
XML Instance Representation
<
ic :文書
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :文書>
Schema Component Representation
<
xsd:element name ="
文書 "
type ="
ic :文書型 "
nillable ="
true "/>
Element: 方書
Name
方書
Type
ic :方書-単純型
Nillable
no
Abstract
no
Documentation
方書 (私書箱も含む)を記述するためのプロパティ用語 The C/O specification (including a private mail box).
Diagram
Schema Component Representation
<
xsd:element name ="
方書 "
type ="
ic :方書-単純型 "/>
Element: 法人
Name
法人
Type
ic :法人型
Nillable
yes
Abstract
no
Documentation
法人を表現するためのクラス用語 A class term to express a corporation.
Diagram
XML Instance Representation
<
ic :法人
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :法人>
Schema Component Representation
<
xsd:element name ="
法人 "
type ="
ic :法人型 "
nillable ="
true "/>
Element: 本籍
Name
本籍
Type
ic :住所型
Nillable
yes
Abstract
no
Documentation
本籍を記述するためのプロパティ用語 The registered domicile by birth.
Diagram
XML Instance Representation
<
ic :本籍
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :本籍>
Schema Component Representation
<
xsd:element name ="
本籍 "
type ="
ic :住所型 "
nillable ="
true "/>
Element: 名
Name
名
Type
ic :名-単純型
Nillable
no
Abstract
no
Documentation
氏名の名の表記を記述するためのプロパティ用語 The given name expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
名 "
type ="
ic :名-単純型 "/>
Name
名カナ表記
Type
ic :名カナ表記-単純型
Nillable
no
Abstract
no
Documentation
氏名の名のカタカナ表記を記述するためのプロパティ用語 The textual expression of a given name in Katakana.
Diagram
Name
名ローマ字表記
Type
ic :名ローマ字表記-単純型
Nillable
no
Abstract
no
Documentation
氏名の名のローマ字表記を記述するためのプロパティ用語 The textual expression of a given name in the Roman alphabet.
Diagram
Element: 名称
XML Instance Representation
<
ic :名称
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :名称>
Schema Component Representation
<
xsd:element name ="
名称 "
type ="
ic :名称型 "
nillable ="
true "/>
Element: 面積
Name
面積
Type
ic :面積型
Nillable
yes
Abstract
no
Documentation
土地などの面積を記述するためのプロパティ用語 The area of a land, etc.
Diagram
XML Instance Representation
<
ic :面積
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :面積>
Schema Component Representation
<
xsd:element name ="
面積 "
type ="
ic :面積型 "
nillable ="
true "/>
Element: 役割
Name
役割
Type
ic :役割-単純型
Nillable
no
Abstract
no
Documentation
人、組織、施設などの役割の表記を記述するためのプロパティ用語 The role of a person, organization, or facility, etc. expressed as text.
Diagram
Schema Component Representation
<
xsd:element name ="
役割 "
type ="
ic :役割-単純型 "/>
Name
役割コード
Type
ic :コード型
Nillable
yes
Abstract
no
Documentation
人、組織、施設などの役割を表すコードを記述するためのプロパティ用語 The code specifying a role of a person, organization, or facility, etc.
Diagram
XML Instance Representation
<
ic :役割コード
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :役割コード>
Schema Component Representation
<
xsd:element name ="
役割コード "
type ="
ic :コード型 "
nillable ="
true "/>
Name
有効開始日時
Type
ic :日時型
Nillable
yes
Abstract
no
Documentation
スケジュールが有効になる日時を記述するためのプロパティ用語 The date and time when a schedule becomes effective.
Diagram
XML Instance Representation
<
ic :有効開始日時
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :有効開始日時>
Schema Component Representation
<
xsd:element name ="
有効開始日時 "
type ="
ic :日時型 "
nillable ="
true "/>
Name
有効終了日時
Type
ic :日時型
Nillable
yes
Abstract
no
Documentation
スケジュールが無効になる日時を記述するためのプロパティ用語 The date and time when a schedule becomes ineffective.
Diagram
XML Instance Representation
<
ic :有効終了日時
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :有効終了日時>
Schema Component Representation
<
xsd:element name ="
有効終了日時 "
type ="
ic :日時型 "
nillable ="
true "/>
Element: 郵便番号
Name
郵便番号
Type
ic :郵便番号-単純型
Nillable
no
Abstract
no
Documentation
郵便番号を記述するためのプロパティ用語 ※0-9の数字7桁 The postal code. Note: A string consisting of seven numeric characters of '0 to 9'.
Diagram
Element: 容量
Name
容量
Type
ic :容量型
Nillable
yes
Abstract
no
Documentation
容量を表現するためのクラス用語 A class term to express volume.
Diagram
XML Instance Representation
<
ic :容量
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :容量>
Schema Component Representation
<
xsd:element name ="
容量 "
type ="
ic :容量型 "
nillable ="
true "/>
Element: 要約
Schema Component Representation
<
xsd:element name ="
要約 "
type ="
ic :要約-単純型 "/>
Name
利用可能時間
Type
ic :期間スケジュール型
Nillable
yes
Abstract
no
Documentation
利用可能日と利用可能時間を記述するためのプロパティ用語 The available date (or day) and opening hours.
Diagram
XML Instance Representation
<
ic :利用可能時間
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :利用可能時間>
Schema Component Representation
<
xsd:element name ="
利用可能時間 "
type ="
ic :期間スケジュール型 "
nillable ="
true "/>
Element: 利用者
Name
利用者
Type
ic :利用者-単純型
Nillable
no
Abstract
no
Documentation
利用者の条件を記述するためのプロパティ用語 ※利用者に限定条件がある場合 The condition of eligible users. Note: When limiting conditions are specified for users.
Diagram
Element: 利用対象
Name
利用対象
Type
ic :対象型
Nillable
yes
Abstract
no
Documentation
利用対象となる事物を記述するためのプロパティ用語 The thing to be targeted for a service, etc.
Diagram
XML Instance Representation
<
ic :利用対象
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :利用対象>
Schema Component Representation
<
xsd:element name ="
利用対象 "
type ="
ic :対象型 "
nillable ="
true "/>
Element: 利用方法
Name
略称アルファベット
Type
ic :略称アルファベット-単純型
Nillable
no
Abstract
no
Documentation
頭文字などを使った略称表記を記述するためのプロパティ用語 The abbreviated expression using initial letters, etc.
Diagram
Element: 料金
Name
料金
Type
ic :価格型
Nillable
yes
Abstract
no
Documentation
料金(施設、設備の利用料金やイベントの参加費など)を記述するためのプロパティ用語 The fee (such as a usage fee of a facility or equipment, and a participation fee of an event).
Diagram
XML Instance Representation
<
ic :料金
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :料金>
Schema Component Representation
<
xsd:element name ="
料金 "
type ="
ic :価格型 "
nillable ="
true "/>
Element: 量種別
Name
量種別
Type
ic :量種別-単純型
Nillable
no
Abstract
no
Documentation
量の種別の表記を記述するためのプロパティ用語 The category of a quantity expressed as text.
Diagram
Element: 連絡先
XML Instance Representation
<
ic :連絡先
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</
ic :連絡先>
Schema Component Representation
<
xsd:element name ="
連絡先 "
type ="
ic :連絡先型 "
nillable ="
true "/>
Element: 路線
Name
路線
Type
ic :路線-単純型
Nillable
no
Abstract
no
Documentation
アクセス区間に用いる交通の路線(事業者及び路線名、バス系統など)を記述するためのプロパティ用語 The line of transportation used in an section of the route (such as a transport service provider, line name, and bus route).
Diagram
Schema Component Representation
<
xsd:element name ="
路線 "
type ="
ic :路線-単純型 "/>
Complex Type: ID型
Super-types:
概念型
< ID型 (by extension)
Sub-types:
None
Name
ID型
Abstract
no
Documentation
IDを表現するためのクラス用語 A class term to express an identifier.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
ID型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: ID体系型
Super-types:
概念型
<
事物型
(by extension) < ID体系型 (by extension)
Sub-types:
None
Name
ID体系型
Abstract
no
Documentation
IDの体系を表現するためのクラス用語 A class term to express a system for specifying identifiers.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
ID体系型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Super-types:
概念型
< アクセス区間型 (by extension)
Sub-types:
None
Name
アクセス区間型
Abstract
no
Documentation
アクセスに含まれる各区間を表現するためのクラス用語 A class term to express each section of a route.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
アクセス区間型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: アクセス型
Super-types:
概念型
< アクセス型 (by extension)
Sub-types:
None
Name
アクセス型
Abstract
no
Documentation
地物等へのアクセスを表現するためのクラス用語 A class term to express a route to a feature, etc.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
アクセス型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Super-types:
概念型
<
期間スケジュール型
(by extension) < イベントスケジュール型 (by extension)
Sub-types:
None
Name
イベントスケジュール型
Abstract
no
Documentation
イベントスケジュールを表現するためのクラス用語 A class term to express an event schedule.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
イベントスケジュール型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :期間スケジュール型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: イベント型
Super-types:
概念型
<
事物型
(by extension) < イベント型 (by extension)
Sub-types:
None
Name
イベント型
Abstract
no
Documentation
時間と場所を指定して行われるイベント(ビジネス、スポーツ、教育、娯楽などの催し)を表現するためのクラス用語 A class term to express an event (such as a business, sport, educational, or entertaining activity) which is held at the specified time and location.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
イベント型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Super-types:
概念型
<
事物型
(by extension) < コードリスト型 (by extension)
Sub-types:
None
Name
コードリスト型
Abstract
no
Documentation
コードリストを表現するためのクラス用語 A class term to express a code list.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
コードリスト型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: コード型
Super-types:
概念型
< コード型 (by extension)
Sub-types:
Name
コード型
Abstract
no
Documentation
コードを表現するためのクラス用語 A class term to express a code.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
コード型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: コード制約型
Super-types:
概念型
<
制約型
(by extension) < コード制約型 (by extension)
Sub-types:
None
Name
コード制約型
Abstract
no
Documentation
対象となる事物の制約条件をコードによって指定するためのクラス用語 A class term to express a restriction on a targeted thing as a code.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
コード制約型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :制約型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: サービス型
Super-types:
概念型
<
事物型
(by extension) < サービス型 (by extension)
Sub-types:
None
Name
サービス型
Abstract
no
Documentation
サービスの情報を表現するためのクラス用語 A class term to express a service.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
サービス型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 価格型
Super-types:
概念型
<
事物型
(by extension) < 価格型 (by extension)
Sub-types:
None
Name
価格型
Abstract
no
Documentation
価格を表現するためのクラス用語 A class term to express a price.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
価格型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 概念型
Super-types:
None
Sub-types:
人数型 (by extension)構成員型 (by extension)組織関連型 (by extension)ID型 (by extension)施設関連型 (by extension)関与型 (by extension)数量型 (by extension)容量型 (by extension)面積型 (by extension)重量型 (by extension)長さ型 (by extension)金額型 (by extension)状況型 (by extension)日時型 (by extension)日付型 (by extension)期間スケジュール型 (by extension)コード型 (by extension)アクセス型 (by extension)アクセス区間型 (by extension)事物型 (by extension)名称型 (by extension)氏名型 (by extension)住所型 (by extension)連絡先型 (by extension)場所型 (by extension)地物型 (by extension)土地型 (by extension)施設型 (by extension)建物型 (by extension)座標型 (by extension)ID体系型 (by extension)製品型 (by extension)設備型 (by extension)イベント型 (by extension)活動型 (by extension)価格型 (by extension)実体型 (by extension)人型 (by extension)組織型 (by extension)コードリスト型 (by extension)サービス型 (by extension)文書型 (by extension)対象型 (by extension)参照型 (by extension)記述型 (by extension)制約型 (by extension)
Name
概念型
Abstract
no
Documentation
全ての型のベースとなる基本型としてのクラス用語 A class term that serves as the base type for all types.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
概念型 ">
<
xsd:sequence >
</
xsd:sequence >
<
xsd:attribute name ="
id "
type ="
xsd :ID"/>
<
xsd:attribute name ="
ref "
type ="
xsd :IDREF"/>
</
xsd:complexType >
Complex Type: 活動型
Super-types:
概念型
<
事物型
(by extension) < 活動型 (by extension)
Sub-types:
None
Name
活動型
Abstract
no
Documentation
活動を表現するためのクラス用語 A class term to express an activity.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
活動型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 関与型
Super-types:
概念型
< 関与型 (by extension)
Sub-types:
None
Name
関与型
Abstract
no
Documentation
関連する組織や人を表現するためのクラス用語 A class term to express an associated organization or person.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
関与型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Super-types:
概念型
< 期間スケジュール型 (by extension)
Sub-types:
Name
期間スケジュール型
Abstract
no
Documentation
期間やスケジュールを表現するためのクラス用語 A class term to express a period or schedule.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
期間スケジュール型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 "/>
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 期間型
Super-types:
概念型
<
期間スケジュール型
(by extension) < 期間型 (by extension)
Sub-types:
None
Name
期間型
Abstract
no
Documentation
期間を表現するためのクラス用語 A class term to express a period.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
期間型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :期間スケジュール型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 期間制約型
Super-types:
概念型
<
制約型
(by extension) < 期間制約型 (by extension)
Sub-types:
None
Name
期間制約型
Abstract
no
Documentation
対象となる事物の制約条件を期間によって指定するためのクラス用語 A class term to express a restriction on a targeted thing by means of a period.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
期間制約型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :制約型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 記述型
Super-types:
概念型
< 記述型 (by extension)
Sub-types:
None
Name
記述型
Abstract
no
Documentation
種別付きの説明文を表現するためのクラス用語 A class term to express an explanation in text with a category.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
記述型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 業務組織型
Super-types:
概念型
<
事物型
(by extension) <
実体型
(by extension) <
組織型
(by extension) < 業務組織型 (by extension)
Sub-types:
Name
業務組織型
Abstract
no
Documentation
業務組織を表現するためのクラス用語 A class term to express a business organization.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
業務組織型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :組織型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 金額型
Super-types:
概念型
< 金額型 (by extension)
Sub-types:
None
Name
金額型
Abstract
no
Documentation
金額を表現するためのクラス用語 A class term to express amount of money.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
金額型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 建物型
Super-types:
概念型
<
事物型
(by extension) <
場所型
(by extension) <
地物型
(by extension) < 建物型 (by extension)
Sub-types:
None
Name
建物型
Abstract
no
Documentation
建物を表現するためのクラス用語 A class term to express a building.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
建物型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :地物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 構成員型
Super-types:
概念型
< 構成員型 (by extension)
Sub-types:
None
Name
構成員型
Abstract
no
Documentation
組織等を構成する人を表現するクラス用語 A class term to express members comprising an organization.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
構成員型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 座標型
Super-types:
概念型
<
事物型
(by extension) < 座標型 (by extension)
Sub-types:
None
Name
座標型
Abstract
no
Documentation
座標を表現するためのクラス用語 A class term to express latitude-longitude coordinates.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
座標型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 参照型
Super-types:
概念型
< 参照型 (by extension)
Sub-types:
None
Name
参照型
Abstract
no
Documentation
追加情報等を参照するためのクラス用語 A class term to refer to additional information.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
参照型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 施設関連型
Super-types:
概念型
< 施設関連型 (by extension)
Sub-types:
None
Name
施設関連型
Abstract
no
Documentation
施設の関連を表現するためのクラス用語 A class term to express an associated facility.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
施設関連型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 施設型
Super-types:
概念型
<
事物型
(by extension) <
場所型
(by extension) <
地物型
(by extension) < 施設型 (by extension)
Sub-types:
Name
施設型
Abstract
no
Documentation
施設を表現するためのクラス用語 A class term to express a facility.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
施設型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :地物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 氏名型
Super-types:
概念型
<
事物型
(by extension) < 氏名型 (by extension)
Sub-types:
None
Name
氏名型
Abstract
no
Documentation
人の氏名を表現するためのクラス用語 A class term to express the name of a person.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
氏名型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 事物型
Super-types:
概念型
< 事物型 (by extension)
Sub-types:
名称型 (by extension)氏名型 (by extension)住所型 (by extension)連絡先型 (by extension)場所型 (by extension)地物型 (by extension)土地型 (by extension)施設型 (by extension)建物型 (by extension)座標型 (by extension)ID体系型 (by extension)製品型 (by extension)設備型 (by extension)イベント型 (by extension)活動型 (by extension)価格型 (by extension)実体型 (by extension)人型 (by extension)組織型 (by extension)コードリスト型 (by extension)サービス型 (by extension)文書型 (by extension)対象型 (by extension)
Name
事物型
Abstract
no
Documentation
識別可能なことやものを表すためのクラス用語 A class term to represent an identifiable thing.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
事物型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 実体型
Super-types:
概念型
<
事物型
(by extension) < 実体型 (by extension)
Sub-types:
人型 (by extension)組織型 (by extension)
Name
実体型
Abstract
no
Documentation
実体を表現するためのクラス用語 A class term to express an entity.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
実体型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 "/>
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 住所型
Super-types:
概念型
<
事物型
(by extension) < 住所型 (by extension)
Sub-types:
None
Name
住所型
Abstract
no
Documentation
住所を表現するためのクラス用語 A class term to express an address.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
住所型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 重量型
Super-types:
概念型
< 重量型 (by extension)
Sub-types:
None
Name
重量型
Abstract
no
Documentation
重量を表現するためのクラス用語 A class term to express weight.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
重量型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Super-types:
概念型
<
期間スケジュール型
(by extension) < 詳細スケジュール規則型 (by extension)
Sub-types:
None
Name
詳細スケジュール規則型
Abstract
no
Documentation
(将来的に整備する予定)繰り返し型のスケジュールを定義するためのクラス用語 (To be defined in the future) class term to define a repetitive schedule.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
詳細スケジュール規則型 ">
<
xsd:complexContent >
</
xsd:complexContent >
</
xsd:complexType >
Super-types:
概念型
<
期間スケジュール型
(by extension) < 詳細スケジュール型 (by extension)
Sub-types:
None
Name
詳細スケジュール型
Abstract
no
Documentation
(将来的に整備する予定)施設等のオープン日とオープン時間を表現するためのクラス用語。複数のスケジュールが列挙された場合はそれらの和を取るものとする (To be defined in the future)A class term to express opening time and day of a facility. When multiple schedules are listed, enumerate them.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
詳細スケジュール型 ">
<
xsd:complexContent >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 場所型
Super-types:
概念型
<
事物型
(by extension) < 場所型 (by extension)
Sub-types:
地物型 (by extension)土地型 (by extension)施設型 (by extension)建物型 (by extension)
Name
場所型
Abstract
no
Documentation
場所を表現するためのクラス用語 A class term to express a location.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
場所型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 状況型
Super-types:
概念型
< 状況型 (by extension)
Sub-types:
None
Name
状況型
Abstract
no
Documentation
状況を表現するためのクラス用語 A class term to express state of affairs.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
状況型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 人型
Super-types:
概念型
<
事物型
(by extension) <
実体型
(by extension) < 人型 (by extension)
Sub-types:
None
Name
人型
Abstract
no
Documentation
人の情報を表現するためのクラス用語 A class term to express information of a person.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
人型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :実体型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 人数型
Super-types:
概念型
< 人数型 (by extension)
Sub-types:
None
Name
人数型
Abstract
no
Documentation
人数を表現するためのクラス用語 A class term to express the number of people involved.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
人数型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 数量型
Super-types:
概念型
< 数量型 (by extension)
Sub-types:
None
Name
数量型
Abstract
no
Documentation
数量を表現するためのクラス用語 A class term to express quantity.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
数量型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 制約型
Super-types:
概念型
< 制約型 (by extension)
Sub-types:
Name
制約型
Abstract
no
Documentation
対象となる事物の制約条件を表すクラス用語 A class term to express a restriction on a thing to be targeted.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
制約型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 製品型
Super-types:
概念型
<
事物型
(by extension) < 製品型 (by extension)
Sub-types:
Name
製品型
Abstract
no
Documentation
製品を表現するためのクラス用語 A class term to express a product.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
製品型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 製品個品型
Super-types:
概念型
<
事物型
(by extension) <
製品型
(by extension) < 製品個品型 (by extension)
Sub-types:
None
Name
製品個品型
Abstract
no
Documentation
製品を個別に表現するためのクラス用語 A class term to express an individual product.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
製品個品型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :製品型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 設備型
Super-types:
概念型
<
事物型
(by extension) < 設備型 (by extension)
Sub-types:
None
Name
設備型
Abstract
no
Documentation
施設や建物等に備わっている設備を表現するためのクラス用語 A class term to express an equipment installed in a facility or building.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
設備型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 組織関連型
Super-types:
概念型
< 組織関連型 (by extension)
Sub-types:
None
Name
組織関連型
Abstract
no
Documentation
組織の関連を表現するためのクラス用語 A class term to express an association with another organization.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
組織関連型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 組織型
Super-types:
概念型
<
事物型
(by extension) <
実体型
(by extension) < 組織型 (by extension)
Sub-types:
Name
組織型
Abstract
no
Documentation
組織を表現するためのクラス用語 A class term to express an organization.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
組織型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :実体型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 対象型
Super-types:
概念型
<
事物型
(by extension) < 対象型 (by extension)
Sub-types:
None
Name
対象型
Abstract
no
Documentation
イベントや制度等の対象となる事物を表すクラス用語 A class term to express a thing to be targeted for an event or system.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
対象型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 単位コード型
Super-types:
概念型
<
コード型
(by extension) < 単位コード型 (by extension)
Sub-types:
None
Name
単位コード型
Abstract
no
Documentation
単位コードを表現するためのクラス用語 A class term to express a unit code.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
単位コード型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :コード型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 地物型
Super-types:
概念型
<
事物型
(by extension) <
場所型
(by extension) < 地物型 (by extension)
Sub-types:
土地型 (by extension)施設型 (by extension)建物型 (by extension)
Name
地物型
Abstract
no
Documentation
参照対象となる地物(施設や建物など)を表すためのクラス用語 A class term to express a feature (such as a facility or building) to be referenced.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
地物型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :場所型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 駐車場型
Super-types:
概念型
<
事物型
(by extension) <
場所型
(by extension) <
地物型
(by extension) <
施設型
(by extension) < 駐車場型 (by extension)
Sub-types:
None
Name
駐車場型
Abstract
no
Documentation
駐車場を表現するためのクラス用語 A class term to express a parking area.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
駐車場型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :施設型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 長さ型
Super-types:
概念型
< 長さ型 (by extension)
Sub-types:
None
Name
長さ型
Abstract
no
Documentation
長さを表現するためのクラス用語 A class term to express length.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
長さ型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Super-types:
概念型
<
期間スケジュール型
(by extension) < 定期スケジュール型 (by extension)
Sub-types:
None
Name
定期スケジュール型
Abstract
no
Documentation
定期的に繰り返されるスケジュールを表現するクラス用語 A class term to express a schedule that is repeatedly held on a regular basis.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
定期スケジュール型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :期間スケジュール型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 電話番号型
Super-types:
xsd :string < 電話番号型 (by extension)
Sub-types:
None
Name
電話番号型
Abstract
no
Documentation
電話番号を表現するためのクラス用語 ※0-9 の数字及び + - ( ) , の文字のみを使用 A class term to express a telephone number. Note: Use '0 to 9' numeric characters and 'plus '+', minus '-', opening parenthesis '(', closing parenthesis ')', and comma ',' 'characters only.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
xsd :string </...>
Schema Component Representation
<
xsd:complexType name ="
電話番号型 ">
<
xsd:simpleContent >
<
xsd:extension base ="
xsd :string">
<
xsd:attribute name ="
id "
type ="
xsd :ID"/>
<
xsd:attribute name ="
ref "
type ="
xsd :IDREF"/>
</
xsd:extension >
</
xsd:simpleContent >
</
xsd:complexType >
Complex Type: 土地型
Super-types:
概念型
<
事物型
(by extension) <
場所型
(by extension) <
地物型
(by extension) < 土地型 (by extension)
Sub-types:
None
Name
土地型
Abstract
no
Documentation
特定の用途に用いられる土地を表現するためのクラス用語 A class term to express a plot of land used for a specific purpose.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
土地型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :地物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 日時型
Super-types:
概念型
< 日時型 (by extension)
Sub-types:
None
Name
日時型
Abstract
no
Documentation
日時を表現するためのクラス用語 A class term to express date and time.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
日時型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 日付型
Super-types:
概念型
< 日付型 (by extension)
Sub-types:
None
Name
日付型
Abstract
no
Documentation
日付を表現するためのクラス用語 A class term to express date.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
日付型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 範囲制約型
Super-types:
概念型
<
制約型
(by extension) < 範囲制約型 (by extension)
Sub-types:
None
Name
範囲制約型
Abstract
no
Documentation
対象となる事物の制約条件を数量の範囲によって指定するためのクラス用語 A class term to express a restriction on a targeted thing by means of a numerical range.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
範囲制約型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :制約型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 文書型
Super-types:
概念型
<
事物型
(by extension) < 文書型 (by extension)
Sub-types:
None
Name
文書型
Abstract
no
Documentation
文書の情報を表すクラス用語(Dublin Core Metadata Element Setに準拠) A class term to express information of a document (that complies with Dublin Core Metadata Element Set).
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
文書型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 法人型
Super-types:
概念型
<
事物型
(by extension) <
実体型
(by extension) <
組織型
(by extension) <
業務組織型
(by extension) < 法人型 (by extension)
Sub-types:
None
Name
法人型
Abstract
no
Documentation
法人を表現するためのクラス用語 A class term to express a corporation.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
法人型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :業務組織型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 名称型
Super-types:
概念型
<
事物型
(by extension) < 名称型 (by extension)
Sub-types:
None
Name
名称型
Abstract
no
Documentation
組織や地物等の名称を表現するためのクラス用語 A class term to express names of an organization or feature.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
名称型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 面積型
Super-types:
概念型
< 面積型 (by extension)
Sub-types:
None
Name
面積型
Abstract
no
Documentation
面積を表現するためのクラス用語 A class term to express area.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
面積型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 容量型
Super-types:
概念型
< 容量型 (by extension)
Sub-types:
None
Name
容量型
Abstract
no
Documentation
容量を表現するためのクラス用語 A class term to express volume.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
容量型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :概念型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Complex Type: 連絡先型
Super-types:
概念型
<
事物型
(by extension) < 連絡先型 (by extension)
Sub-types:
None
Name
連絡先型
Abstract
no
Documentation
連絡先を表現するためのクラス用語 A class term to express a contact.
Diagram
XML Instance Representation
<...
id="xsd :ID [0..1] " ref="xsd :IDREF [0..1] " >
</...>
Schema Component Representation
<
xsd:complexType name ="
連絡先型 ">
<
xsd:complexContent >
<
xsd:extension base ="
ic :事物型 ">
<
xsd:sequence >
</
xsd:sequence >
</
xsd:extension >
</
xsd:complexContent >
</
xsd:complexType >
Name
ID型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
ID型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :体系 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :識別値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :参照 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
ID体系型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
ID体系型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :発行者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :バージョン "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
アクセス区間型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
アクセス区間型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :始点 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :始点備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :路線 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終点 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終点備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :時間 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
アクセス型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
アクセス型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :ID "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :始点 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :始点備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終点 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終点備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :アクセス区間 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :時間 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :地図 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
イベントスケジュール型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
イベントスケジュール型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :開催日 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :開始日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終了日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :開始時間 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終了時間 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :説明 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
イベント型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
イベント型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関連組織 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :開催場所 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :期間 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :参加方法 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :連絡先 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :要約 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関連イベント "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :人数 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :キーワード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :料金 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :利用対象 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
コードリスト型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
コードリスト型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :発行者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :バージョン "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
コード型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
コード型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :コード種別 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :識別値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :表記 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :上位コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :下位コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関連コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :参照 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
コード制約型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
コード制約型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :制約コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
サービス型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
サービス型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :利用対象 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :提供者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :利用方法 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
価格型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
価格型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :金額 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
概念型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
概念型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :種別 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :種別コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :メタデータ "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
活動型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
活動型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関与 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :場所 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :日時 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :期間 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
関与型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
関与型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :役割 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :役割コード "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :関与者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
期間型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
期間型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :開始日時 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終了日時 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :説明 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
期間制約型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
期間制約型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :期間 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
記述型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
記述型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :説明 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
業務組織型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
業務組織型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :事業種目 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :事業年度開始日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :代理人 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
金額型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
金額型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :数値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :通貨 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :通貨コード "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :乗数 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
建物型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
建物型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :敷地面積 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :主要用途 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :建築面積 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :延べ面積 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :最高の高さ "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :地上階数 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :地下階数 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :構造 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :竣工日 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :施設 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
構成員型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
構成員型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :役割 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :構成員 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
座標型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
座標型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :座標参照系 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :緯度経度書式 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :緯度 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :経度 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :座標データ書式 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :座標データ "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :測地高度 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
参照型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
参照型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :参照先 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
施設関連型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
施設関連型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :役割 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :施設 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
施設型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
施設型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :利用可能時間 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :料金 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :収容人数 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :駐車場 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :建物 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関連施設 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
氏名型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
氏名型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :姓名 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :姓名カナ表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :姓名ローマ字表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :姓 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :姓カナ表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :姓ローマ字表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :名 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :名カナ表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :名ローマ字表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :ミドルネーム "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :ミドルネームカナ表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
事物型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
事物型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :ID "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :表記 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :参照 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :画像 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :説明 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :記述 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
住所型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
住所型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :郵便番号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :住所コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :国 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :国コード "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :都道府県 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :都道府県コード "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :市区町村 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :区 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :市区町村コード "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :町名 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :丁目 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :番地補足 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :番地 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :ビル名 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :ビル番号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :部屋番号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :方書 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
重量型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
重量型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :数値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
場所型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
場所型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :通称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :地理識別子 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :住所 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :地理座標 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
状況型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
状況型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :発生日 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関与 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :説明 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :期間 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
人型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
人型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :氏名 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :性別 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :性別コード "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :生年月日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :死亡年月日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :住所 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :本籍 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :連絡先 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :国籍 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :国籍コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :出生国 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :出生国コード "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :出生地 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :年齢 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :身長 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :体重 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
人数型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
人数型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :人数 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
数量型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
数量型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :数値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
制約型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
制約型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :制約対象 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :説明 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
製品型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
製品型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :自動認識ID "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :価格 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :使用方法 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :製造者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :製造者ID "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :販売業者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :販売業者ID "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :入数 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :形態 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :重量 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :サイズ "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :幅 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :高さ "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :長さ "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :色 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :原産国 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :原産国コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :規制情報 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
製品個品型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
製品個品型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :製造日 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :ロット番号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :消費期限 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :使用期限 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :賞味期限 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :シリアル番号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :状態 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :所有者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :購入価格 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
設備型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
設備型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :設置地点 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :設置位置 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :利用可能時間 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :料金 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :外部利用可否 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :利用者 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :設置日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :Webサイト "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :設置者 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :管理者 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :連絡先 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :バリアフリー "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
組織関連型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
組織関連型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :役割 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :組織 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
組織型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
組織型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :略称アルファベット "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :通称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :活動状況 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :活動 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :概要 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :連絡先 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関連組織 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関連人員 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :地物 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :住所 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :代表者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :設立日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :備考 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
対象型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
対象型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :制約 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
単位コード型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
単位コード型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :量種別 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :乗数 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
地物型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
地物型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :要約 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :アクセス "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :連絡先 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :設備 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :関与 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
駐車場型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
駐車場型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :駐車場種別 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :収容台数 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
長さ型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
長さ型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :数値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
定期スケジュール型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
定期スケジュール型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :開催期日 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :有効開始日時 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :有効終了日時 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :開始時間 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :終了時間 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :説明 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
土地型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
土地型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :面積 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
日時型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
日時型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :標準型日時 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :年号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :年 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :月 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :時 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :分 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :秒 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :時間帯 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :カレンダー "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
日付型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
日付型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :標準型日付 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :年号 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :年 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :月 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :日 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :時間帯 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :カレンダー "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
範囲制約型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
範囲制約型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :上限値 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :境界を含まない上限値 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :下限値 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :境界を含まない下限値 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
文書型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
文書型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :表題 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :作成者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :キーワード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :発行者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :寄与者 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :日付 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :資源タイプ "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :記録形式 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :記録形式コード "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :出処 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :言語 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :権利管理 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Name
法人型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
法人型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :組織種別位置 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :組織種別 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :資本金 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
名称型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
名称型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :カナ表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :ローマ字表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
面積型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
面積型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :数値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
容量型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
容量型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :数値 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
<
xsd:element ref ="
ic :単位表記 "
minOccurs ="
0 "
maxOccurs ="
1 "/>
</
xsd:sequence >
</
xsd:group >
Name
連絡先型-固有要素グループ
Diagram
Schema Component Representation
<
xsd:group name ="
連絡先型-固有要素グループ ">
<
xsd:sequence >
<
xsd:element ref ="
ic :名称 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :組織 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :担当者役職 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :担当者名 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :Eメールアドレス "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :住所 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :送付先 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :電話番号 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :内線番号 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :FAX番号 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :携帯電話番号 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :Webサイト "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
<
xsd:element ref ="
ic :対応言語 "
minOccurs ="
0 "
maxOccurs ="
unbounded "/>
</
xsd:sequence >
</
xsd:group >
Super-types:
xsd :string < Eメールアドレス-単純型 (by restriction)
Sub-types:
None
Name
Eメールアドレス-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
Eメールアドレス-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :anyURI < Webサイト-単純型 (by restriction)
Sub-types:
None
Name
Webサイト-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
Webサイト-単純型 ">
<
xsd:restriction base ="
xsd :anyURI"/>
</
xsd:simpleType >
Super-types:
xsd :string < カナ表記-単純型 (by restriction)
Sub-types:
None
Name
カナ表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
カナ表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < キーワード-単純型 (by restriction)
Sub-types:
None
Name
キーワード-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
キーワード-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < サイズ-単純型 (by restriction)
Sub-types:
None
Name
サイズ-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
サイズ-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < バージョン-単純型 (by restriction)
Sub-types:
None
Name
バージョン-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
バージョン-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < バリアフリー-単純型 (by restriction)
Sub-types:
None
Name
バリアフリー-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
バリアフリー-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < ビル番号-単純型 (by restriction)
Sub-types:
None
Name
ビル番号-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
ビル番号-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < ビル名-単純型 (by restriction)
Sub-types:
None
Name
ビル名-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
ビル名-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < ミドルネームカナ表記-単純型 (by restriction)
Sub-types:
None
Name
ミドルネームカナ表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
ミドルネームカナ表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < ミドルネームローマ字表記-単純型 (by restriction)
Sub-types:
None
Name
ミドルネームローマ字表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
ミドルネームローマ字表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < ミドルネーム-単純型 (by restriction)
Sub-types:
None
Name
ミドルネーム-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
ミドルネーム-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < ローマ字表記-単純型 (by restriction)
Sub-types:
None
Name
ローマ字表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
ローマ字表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < ロット番号-単純型 (by restriction)
Sub-types:
None
Name
ロット番号-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
ロット番号-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 緯度経度書式-単純型 (by restriction)
Sub-types:
None
Name
緯度経度書式-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
緯度経度書式-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 緯度-単純型
Super-types:
xsd :string < 緯度-単純型 (by restriction)
Sub-types:
None
Name
緯度-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
緯度-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 画像-単純型
Super-types:
xsd :anyURI < 画像-単純型 (by restriction)
Sub-types:
None
Name
画像-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
画像-単純型 ">
<
xsd:restriction base ="
xsd :anyURI"/>
</
xsd:simpleType >
Super-types:
xsd :string < 開催期日-単純型 (by restriction)
Sub-types:
None
Name
開催期日-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
開催期日-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :time < 開始時間-単純型 (by restriction)
Sub-types:
None
Name
開始時間-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
開始時間-単純型 ">
<
xsd:restriction base ="
xsd :time"/>
</
xsd:simpleType >
Super-types:
xsd :string < 外部利用可否-単純型 (by restriction)
Sub-types:
None
Name
外部利用可否-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
外部利用可否-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 概要-単純型
Super-types:
xsd :string < 概要-単純型 (by restriction)
Sub-types:
None
Name
概要-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
概要-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 規制情報-単純型 (by restriction)
Sub-types:
None
Name
規制情報-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
規制情報-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 記録形式-単純型 (by restriction)
Sub-types:
None
Name
記録形式-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
記録形式-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 区-単純型
Super-types:
xsd :string < 区-単純型 (by restriction)
Sub-types:
None
Name
区-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
区-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 形態-単純型
Super-types:
xsd :string < 形態-単純型 (by restriction)
Sub-types:
None
Name
形態-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
形態-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 経度-単純型
Super-types:
xsd :string < 経度-単純型 (by restriction)
Sub-types:
None
Name
経度-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
経度-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 月-単純型
Super-types:
xsd :integer < 月-単純型 (by restriction)
Sub-types:
None
Name
月-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
月-単純型 ">
<
xsd:restriction base ="
xsd :integer"/>
</
xsd:simpleType >
Super-types:
xsd :string < 原産国-単純型 (by restriction)
Sub-types:
None
Name
原産国-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
原産国-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 構造-単純型
Super-types:
xsd :string < 構造-単純型 (by restriction)
Sub-types:
None
Name
構造-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
構造-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 号-単純型
Super-types:
xsd :string < 号-単純型 (by restriction)
Sub-types:
None
Name
号-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
号-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 国籍-単純型
Super-types:
xsd :string < 国籍-単純型 (by restriction)
Sub-types:
None
Name
国籍-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
国籍-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 国-単純型
Super-types:
xsd :string < 国-単純型 (by restriction)
Sub-types:
None
Name
国-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
国-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 座標データ-単純型 (by restriction)
Sub-types:
None
Name
座標データ-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
座標データ-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 参加方法-単純型 (by restriction)
Sub-types:
None
Name
参加方法-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
参加方法-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :anyURI < 参照先-単純型 (by restriction)
Sub-types:
None
Name
参照先-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
参照先-単純型 ">
<
xsd:restriction base ="
xsd :anyURI"/>
</
xsd:simpleType >
Super-types:
xsd :string < 使用方法-単純型 (by restriction)
Sub-types:
None
Name
使用方法-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
使用方法-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 始点備考-単純型 (by restriction)
Sub-types:
None
Name
始点備考-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
始点備考-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 市区町村-単純型 (by restriction)
Sub-types:
None
Name
市区町村-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
市区町村-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :anyURI < 資源タイプ-単純型 (by restriction)
Sub-types:
None
Name
資源タイプ-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
資源タイプ-単純型 ">
<
xsd:restriction base ="
xsd :anyURI"/>
</
xsd:simpleType >
Super-types:
xsd :string < 事業種目-単純型 (by restriction)
Sub-types:
None
Name
事業種目-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
事業種目-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 時間帯-単純型 (by restriction)
Sub-types:
None
Name
時間帯-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
時間帯-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 時-単純型
Super-types:
xsd :integer < 時-単純型 (by restriction)
Sub-types:
None
Name
時-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
時-単純型 ">
<
xsd:restriction base ="
xsd :integer"/>
</
xsd:simpleType >
Super-types:
xsd :anyURI < 自動認識ID-単純型 (by restriction)
Sub-types:
None
Name
自動認識ID-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
自動認識ID-単純型 ">
<
xsd:restriction base ="
xsd :anyURI"/>
</
xsd:simpleType >
Super-types:
xsd :string < 主要用途-単純型 (by restriction)
Sub-types:
None
Name
主要用途-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
主要用途-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 種別-単純型
Super-types:
xsd :string < 種別-単純型 (by restriction)
Sub-types:
None
Name
種別-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
種別-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :integer < 収容台数-単純型 (by restriction)
Sub-types:
None
Name
収容台数-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
収容台数-単純型 ">
<
xsd:restriction base ="
xsd :integer"/>
</
xsd:simpleType >
Super-types:
xsd :string < 終点備考-単純型 (by restriction)
Sub-types:
None
Name
終点備考-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
終点備考-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :time < 終了時間-単純型 (by restriction)
Sub-types:
None
Name
終了時間-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
終了時間-単純型 ">
<
xsd:restriction base ="
xsd :time"/>
</
xsd:simpleType >
Simple Type: 出処-単純型
Super-types:
xsd :string < 出処-単純型 (by restriction)
Sub-types:
None
Name
出処-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
出処-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 出生国-単純型 (by restriction)
Sub-types:
None
Name
出生国-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
出生国-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 乗数-単純型
Super-types:
xsd :double < 乗数-単純型 (by restriction)
Sub-types:
None
Name
乗数-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
乗数-単純型 ">
<
xsd:restriction base ="
xsd :double"/>
</
xsd:simpleType >
Simple Type: 状態-単純型
Super-types:
xsd :string < 状態-単純型 (by restriction)
Sub-types:
None
Name
状態-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
状態-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 色-単純型
Super-types:
xsd :string < 色-単純型 (by restriction)
Sub-types:
None
Name
色-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
色-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 人数-単純型
Super-types:
xsd :nonNegativeInteger < 人数-単純型 (by restriction)
Sub-types:
None
Name
人数-単純型
Content
Base XSD Type: nonNegativeInteger
Diagram
Schema Component Representation
<
xsd:simpleType name ="
人数-単純型 ">
<
xsd:restriction base ="
xsd :nonNegativeInteger"/>
</
xsd:simpleType >
Simple Type: 数値-単純型
Super-types:
xsd :decimal < 数値-単純型 (by restriction)
Sub-types:
None
Name
数値-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
数値-単純型 ">
<
xsd:restriction base ="
xsd :decimal"/>
</
xsd:simpleType >
Super-types:
xsd :string < 制約対象-単純型 (by restriction)
Sub-types:
None
Name
制約対象-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
制約対象-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 姓カナ表記-単純型 (by restriction)
Sub-types:
None
Name
姓カナ表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
姓カナ表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 姓ローマ字表記-単純型 (by restriction)
Sub-types:
None
Name
姓ローマ字表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
姓ローマ字表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 姓-単純型
Super-types:
xsd :string < 姓-単純型 (by restriction)
Sub-types:
None
Name
姓-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
姓-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 姓名カナ表記-単純型 (by restriction)
Sub-types:
None
Name
姓名カナ表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
姓名カナ表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 姓名ローマ字表記-単純型 (by restriction)
Sub-types:
None
Name
姓名ローマ字表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
姓名ローマ字表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 姓名-単純型
Super-types:
xsd :string < 姓名-単純型 (by restriction)
Sub-types:
None
Name
姓名-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
姓名-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 性別-単純型
Super-types:
xsd :string < 性別-単純型 (by restriction)
Sub-types:
None
Name
性別-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
性別-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 製造者-単純型 (by restriction)
Sub-types:
None
Name
製造者-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
製造者-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 設置位置-単純型 (by restriction)
Sub-types:
None
Name
設置位置-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
設置位置-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 説明-単純型
Super-types:
xsd :string < 説明-単純型 (by restriction)
Sub-types:
None
Name
説明-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
説明-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 組織種別位置-単純型 (by restriction)
Sub-types:
None
Name
組織種別位置-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
組織種別位置-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 送付先-単純型 (by restriction)
Sub-types:
None
Name
送付先-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
送付先-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 対応言語-単純型 (by restriction)
Sub-types:
None
Name
対応言語-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
対応言語-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 単位表記-単純型 (by restriction)
Sub-types:
None
Name
単位表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
単位表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 担当者役職-単純型 (by restriction)
Sub-types:
None
Name
担当者役職-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
担当者役職-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :decimal < 地下階数-単純型 (by restriction)
Sub-types:
None
Name
地下階数-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
地下階数-単純型 ">
<
xsd:restriction base ="
xsd :decimal"/>
</
xsd:simpleType >
Super-types:
xsd :decimal < 地上階数-単純型 (by restriction)
Sub-types:
None
Name
地上階数-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
地上階数-単純型 ">
<
xsd:restriction base ="
xsd :decimal"/>
</
xsd:simpleType >
Simple Type: 地図-単純型
Super-types:
xsd :anyURI < 地図-単純型 (by restriction)
Sub-types:
None
Name
地図-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
地図-単純型 ">
<
xsd:restriction base ="
xsd :anyURI"/>
</
xsd:simpleType >
Super-types:
xsd :string < 駐車場種別-単純型 (by restriction)
Sub-types:
None
Name
駐車場種別-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
駐車場種別-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 丁目-単純型
Super-types:
xsd :string < 丁目-単純型 (by restriction)
Sub-types:
None
Name
丁目-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
丁目-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 町名-単純型
Super-types:
xsd :string < 町名-単純型 (by restriction)
Sub-types:
None
Name
町名-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
町名-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 通貨-単純型
Super-types:
xsd :string < 通貨-単純型 (by restriction)
Sub-types:
None
Name
通貨-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
通貨-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 通称-単純型
Super-types:
xsd :string < 通称-単純型 (by restriction)
Sub-types:
None
Name
通称-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
通称-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 都道府県-単純型 (by restriction)
Sub-types:
None
Name
都道府県-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
都道府県-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 内線番号-単純型 (by restriction)
Sub-types:
None
Name
内線番号-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
内線番号-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 日-単純型
Super-types:
xsd :integer < 日-単純型 (by restriction)
Sub-types:
None
Name
日-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
日-単純型 ">
<
xsd:restriction base ="
xsd :integer"/>
</
xsd:simpleType >
Simple Type: 年号-単純型
Super-types:
xsd :string < 年号-単純型 (by restriction)
Sub-types:
None
Name
年号-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
年号-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 年-単純型
Super-types:
xsd :integer < 年-単純型 (by restriction)
Sub-types:
None
Name
年-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
年-単純型 ">
<
xsd:restriction base ="
xsd :integer"/>
</
xsd:simpleType >
Super-types:
xsd :string < 販売業者-単純型 (by restriction)
Sub-types:
None
Name
販売業者-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
販売業者-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 番地-単純型
Super-types:
xsd :string < 番地-単純型 (by restriction)
Sub-types:
None
Name
番地-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
番地-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 番地補足-単純型 (by restriction)
Sub-types:
None
Name
番地補足-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
番地補足-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 備考-単純型
Super-types:
xsd :string < 備考-単純型 (by restriction)
Sub-types:
None
Name
備考-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
備考-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :dateTime < 標準型日時-単純型 (by restriction)
Sub-types:
None
Name
標準型日時-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
標準型日時-単純型 ">
<
xsd:restriction base ="
xsd :dateTime"/>
</
xsd:simpleType >
Super-types:
xsd :date < 標準型日付-単純型 (by restriction)
Sub-types:
None
Name
標準型日付-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
標準型日付-単純型 ">
<
xsd:restriction base ="
xsd :date"/>
</
xsd:simpleType >
Simple Type: 表記-単純型
Super-types:
xsd :string < 表記-単純型 (by restriction)
Sub-types:
None
Name
表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 表題-単純型
Super-types:
xsd :string < 表題-単純型 (by restriction)
Sub-types:
None
Name
表題-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
表題-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 秒-単純型
Super-types:
xsd :decimal < 秒-単純型 (by restriction)
Sub-types:
None
Name
秒-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
秒-単純型 ">
<
xsd:restriction base ="
xsd :decimal"/>
</
xsd:simpleType >
Super-types:
xsd :string < 部屋番号-単純型 (by restriction)
Sub-types:
None
Name
部屋番号-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
部屋番号-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 分-単純型
Super-types:
xsd :integer < 分-単純型 (by restriction)
Sub-types:
None
Name
分-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
分-単純型 ">
<
xsd:restriction base ="
xsd :integer"/>
</
xsd:simpleType >
Simple Type: 方書-単純型
Super-types:
xsd :string < 方書-単純型 (by restriction)
Sub-types:
None
Name
方書-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
方書-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 名カナ表記-単純型 (by restriction)
Sub-types:
None
Name
名カナ表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
名カナ表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 名ローマ字表記-単純型 (by restriction)
Sub-types:
None
Name
名ローマ字表記-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
名ローマ字表記-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 名-単純型
Super-types:
xsd :string < 名-単純型 (by restriction)
Sub-types:
None
Name
名-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
名-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 役割-単純型
Super-types:
xsd :string < 役割-単純型 (by restriction)
Sub-types:
None
Name
役割-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
役割-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 郵便番号-単純型 (by restriction)
Sub-types:
None
Name
郵便番号-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
郵便番号-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 要約-単純型
Super-types:
xsd :string < 要約-単純型 (by restriction)
Sub-types:
None
Name
要約-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
要約-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 利用者-単純型 (by restriction)
Sub-types:
None
Name
利用者-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
利用者-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 利用方法-単純型 (by restriction)
Sub-types:
None
Name
利用方法-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
利用方法-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 略称アルファベット-単純型 (by restriction)
Sub-types:
None
Name
略称アルファベット-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
略称アルファベット-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Super-types:
xsd :string < 量種別-単純型 (by restriction)
Sub-types:
None
Name
量種別-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
量種別-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Simple Type: 路線-単純型
Super-types:
xsd :string < 路線-単純型 (by restriction)
Sub-types:
None
Name
路線-単純型
Content
Diagram
Schema Component Representation
<
xsd:simpleType name ="
路線-単純型 ">
<
xsd:restriction base ="
xsd :string"/>
</
xsd:simpleType >
Complex Type:
Schema Component Type
AusAddress
Schema Component Name
Super-types:
Address < AusAddress (by extension)
Sub-types:
QLDAddress (by restriction)
If this schema component is a type definition, its type hierarchy is shown in a gray-bordered box.
The table above displays the properties of this schema component.
XML Instance Representation
<...
country="Australia "
>
<unitNo> string </unitNo> [0..1]
<houseNo> string </houseNo> [1]
<street> string </street> [1]
Start Choice
[1]
<city> string </city> [1]
<town> string </town> [1]
End Choice
<state> AusStates </state> [1]
<postcode> string <<pattern = [1-9][0-9]{3}>> </postcode> [1]
?
</...>
The XML Instance Representation table above shows the schema component's content as an XML instance.
The minimum and maximum occurrence of elements and attributes are provided in square brackets, e.g. [0..1].
Model group information are shown in gray, e.g. Start Choice ... End Choice.
For type derivations, the elements and attributes that have been added to or changed from the base type's content are shown in bold .
If an element/attribute has a fixed value, the fixed value is shown in green, e.g. country="Australia".
Otherwise, the type of the element/attribute is displayed.
If the element/attribute's type is in the schema, a link is provided to it.
For local simple type definitions, the constraints are displayed in angle brackets, e.g. <<pattern = [1-9][0-9]{3}>>.
If a local element/attribute has documentation, it will be displayed in a window that pops up when the question mark inside the attribute or next to the element is clicked, e.g. <postcode>.
Schema Component Representation
<complexType
name ="AusAddress ">
<complexContent >
<extension
base ="Address ">
<sequence >
<element
name ="state " type ="AusStates "/>
<element
name ="postcode ">
<simpleType >
<restriction
base ="string ">
<pattern
value ="[1-9][0-9]{3} "/>
</restriction >
</simpleType >
</element >
</sequence >
<attribute
name ="country " type ="string " fixed ="Australia "/>
</extension >
</complexContent >
</complexType >
The Schema Component Representation table above displays the underlying XML representation of the schema component. (Annotations are not shown.)
Abstract (Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.
All Model Group Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all .
Choice Model Group
Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice .
Collapse Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.
Disallowed Substitutions (Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods , e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type
attribute.
Key Constraint Like Uniqueness Constraint , but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions .
Key Reference Constraint Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint . See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions .
Model Group Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups .
Nillable (Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil
attribute. The xsi:nil
attribute is the boolean attribute, nil , from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil
attribute set to true, it can be left empty, even though its element declaration may have required content.
Notation A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations .
Preserve Whitespace Policy Preserve whitespaces exactly as they appear in instances.
Prohibited Derivations (Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.
Prohibited Substitutions (Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.
Replace Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32).
Sequence Model Group Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence .
Substitution Group Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.
Substitution Group Exclusions (Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.
Target Namespace The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.
Uniqueness Constraint Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions .
